Freewing F-16 Falcon V3 EDF Jet - ARF PLUS - from Freewing - FJ21115AP
Version Info: This is the ARF+ version for pilots who wish to install their own power system. All primary electronics including servos and upgraded shock absorbing landing gear come pre-installed, just add your own power system (EDF, motor, and ESC) to begin flying.
The F-16C “Fighting Falcon” is a single-engine multi-role fighter aircraft originally developed for the United States Air Force (USAF). Designed as an air superiority day fighter, the aircraft evolved into a successful all-weather multirole platform. The F-16C features an internal M61 Vulcan cannon and multiple locations for mounting weapons and other mission equipment. Operating in nearly 30 countries to this day, the F-16 has distinguished its place in aviation history.
Freewing has modeled this brilliant aircraft in EPO foam with a 70mm electric ducted fan (EDF) power system. With a 1306mm length and 878mm wingspan, this 1/12 scale flying replica including many exciting features! An accurate scale outline with sharp surface details and panel lines make this model stand out at your airfield. Removable main wings and a magnetic nose cone make transport very convenient. The cockpit battery bay cover is secured with a sliding latch to prevent separation during flight, and the entire aircraft is reinforced with strategic placement of carbon tubes to withstand vigorous flying maneuvers. A control board helps to consolidate all the wiring for a clean battery bay. For pilots who want an extra “scale” touch, an optional ordnance set is sold separately, containing two AIM-120 AMRAAM and two AGM-88 HARM missiles.
The Freewing 70mm F-16C V2 features electric retractable landing gear for lower drag and better scale appearance during flight. The aircraft is designed for stability, strong vertical climbing performance, and short takeoff distance. The aircraft can also maintain a high alpha of 30 degrees to demonstrate its superior low speed stability. We recommend the 6s Pro version for skilled intermediate or advanced pilots with experience flying at least two EDFs.
We are proud to feature this exciting aircraft in the modern three tone gray US Air Force base colors, and three decal sets are included inside the box for you to choose from to customize your model from various actual Air Force squadrons. Visit www.callie-graphics.com to purchase other optional decal sets for this model.
Visit the Official Freewing 70mm F-16 V3 Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
 |
Horizontal Stabilizer Upgraded to Full Flying Stab This Freewing V3 F-16 now comes with a full flying stabilizer instead of standard elevators for more pitch authority. Master the High Alpha maneuver! |
 |
Hardware Updated to Ball Links Now the hardware is updated with ball links for a more confident, secure connection to each control surface. |
 |
Updated Weapon Mounting System The F-16's main wing weapon mounting system was ugraded from glue to guide rails for easy removal and installation. |
 |
Now With Thrust Reverse (PNP Only) The Freewing F-16 V3 comes with an updated 80 amp ESC with thrust reversing functionality to slow and decrease your landing roll distance (PNP version only). |
Features:
- NEW! Horizontal stabilizer has been upgraded to a full flying stab
- NEW! Hardware all updated to ball links
- NEW! Main wing weapon mounting system changed from glue to guide rails for easy removal and installation
- NEW! Vertical stabilizer now uses screws for easy assembly
- NEW! Improved nose landing gear mount
- Model officially licensed by Lockheed Martin
- Upgraded shock absorbing landing gear
- Model officially licensed by Lockheed Martin
- Durable EPO Foam and Reinforced Construction
- Realistic Shape and Detailing
- Removable Wings and Magnetic Nose Cone for Easy Transport
- Minimal Assembly
- Three Decal Sets Included
- Optional Weapon Set (Sold Separately)
Includes:
- Freewing F-16 V3 70mm EDF Jet - ARF PLUS
Requires:
- Brushless motor, EDF unit and ESC (see specifications for details)
- 6 Channel Radio - Select a minimum 6 channel radio from our Radio Collection
- 6 Channel Receiver - Select a minimum 6 channel receiver from our Receiver Collection
- 4 to 6 Cell 14.8V 3600 - 4000 mAh Li-Po Battery with EC5 Connector - We Recommend the Admiral 6S 4000mAh
- 4 to 6 Cell Compatible Battery Charger - Select a minimum 4 cell (4S) charger from our Charger Collection (6 cell charger if you plan on using a 6 Cell battery).
Product Specifications:
Wingspan |
878mm / 34.57in |
Length |
1306mm / 51.4in |
Flying Weight |
2000g (approx) |
CG (Center of Gravity) |
90mm / 3.5" from the leading edge of the wing at the root |
Power System |
2849-2850Kv Brushless Outrunner with 12-Blade Fan Unit (recommended) |
Electronic Speed Control |
70+ Amp (recommended) |
Propeller / EDF |
70mm 12-Blade (recommended) |
Servos |
|
Landing Gear |
Retractable |
Recommended Battery |
4-6 Cell 14.8V 3600 - 4000mAh Li-Po battery |
Required Radio |
6+ CH 2.4GHz Full Range Transmitter |
Ailerons |
Yes |
Elevator |
Yes |
Rudder |
Yes |
Flaps |
No |
Lights |
No |
Hinge Type |
Foam |
Material |
EPO Foam |
Skill Level |
Intermediate |
Build Time |
2+ Hours |
Recommended Environment |
Outdoor |
Videos
Product Videos
Spare Parts
Product Spare Parts
Freewing 9g Digital Hybrid Metal Gear Reverse Servo with 750mm (30") Lead
SKU: MD31093R-750
€1269
Sold out
0 - 32 of 57 results
Upgrades
Product Upgrades
1 - 12 of 12 results
Q&A
Product questions & answers
NOTE: Questions submitted on this page are answered by customers who have previously purchased this item. If you have a support related question that requires immediate assistance, please visit our Help Center
Support
Product support
Product Manuals:
- Freewing F-16 70mm V3 Instruction Manual
- Freewing ESC Programming Manual
- Freewing F-16 70mm V3 Gray Decal Layout Sheet
If you need any additional assistance, please visit the Motion RC Help Center

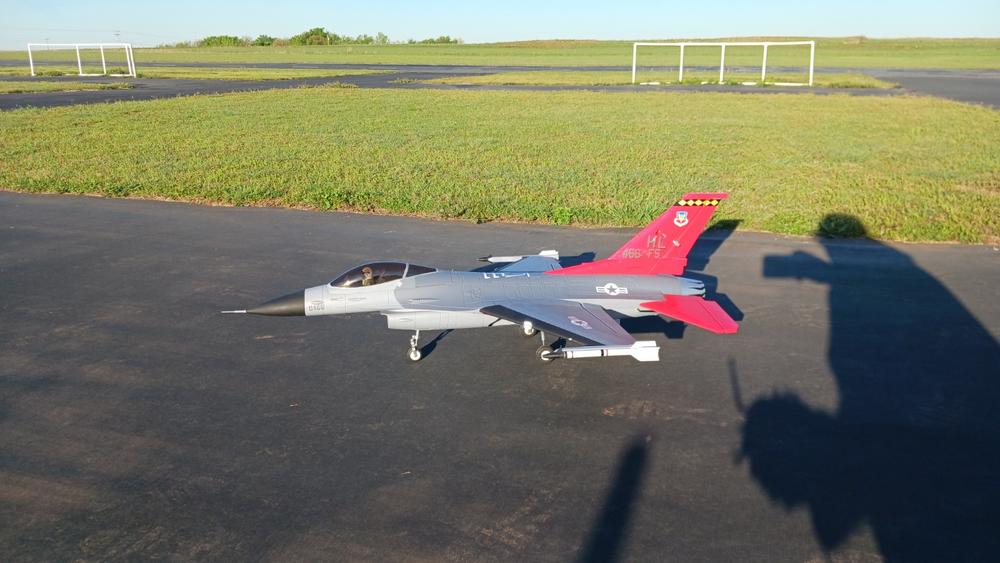

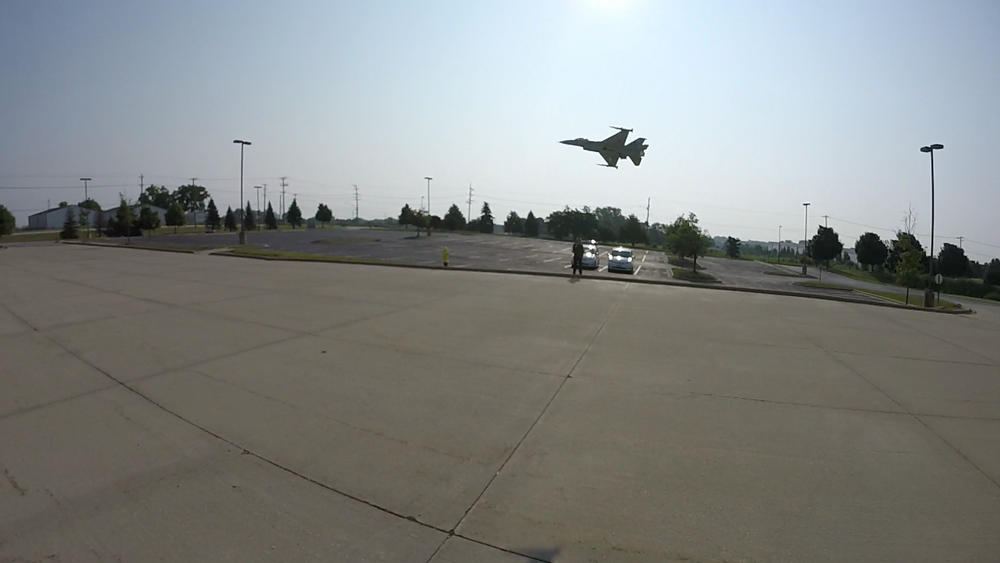

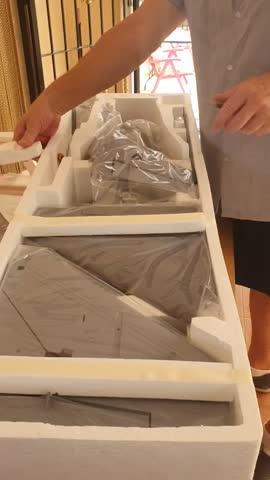

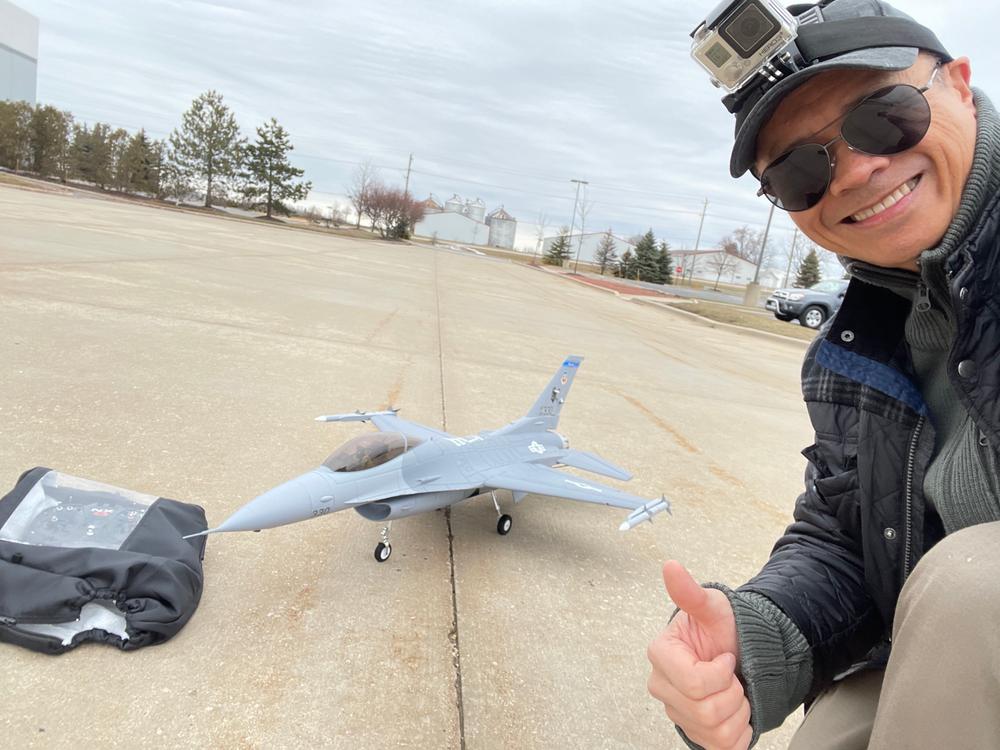

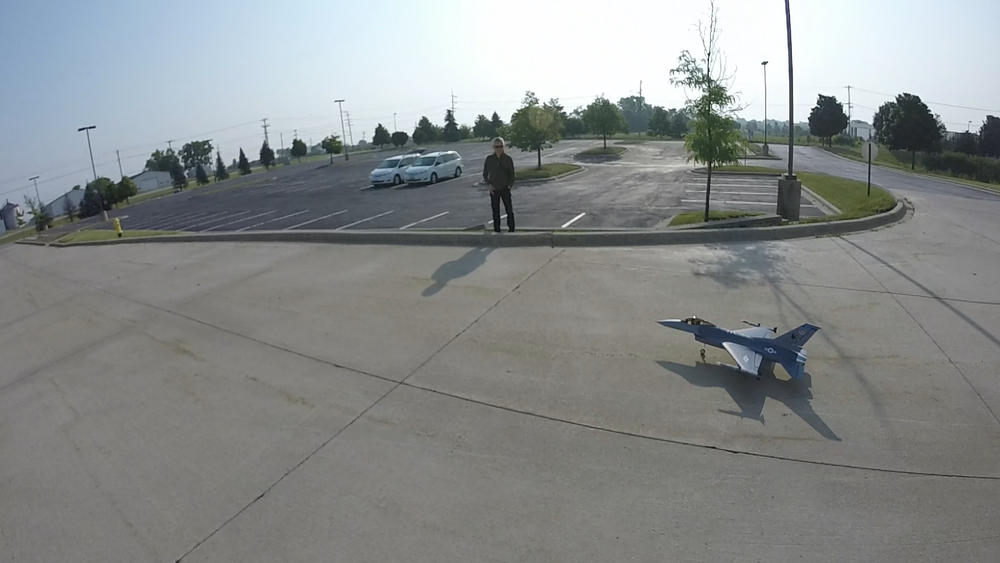

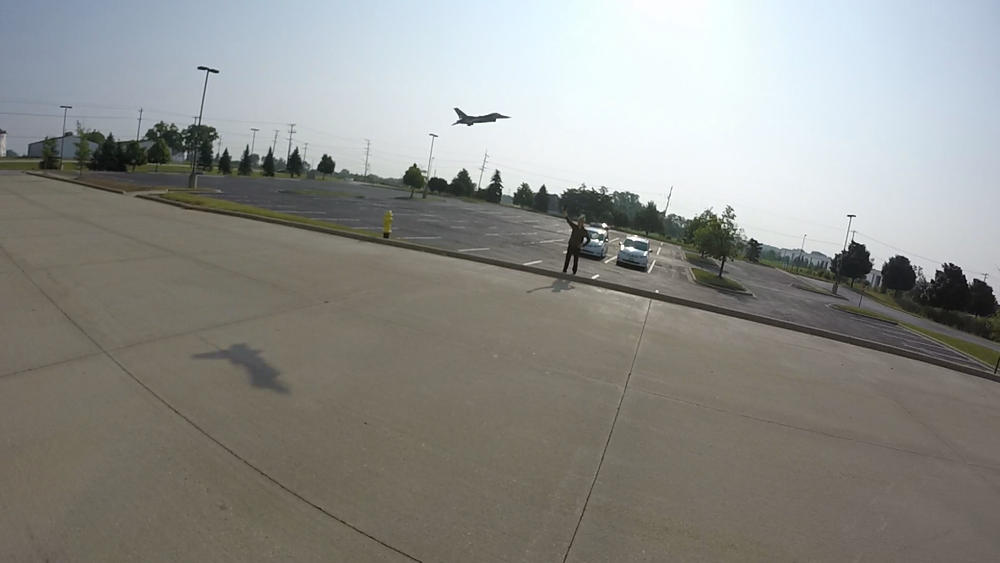

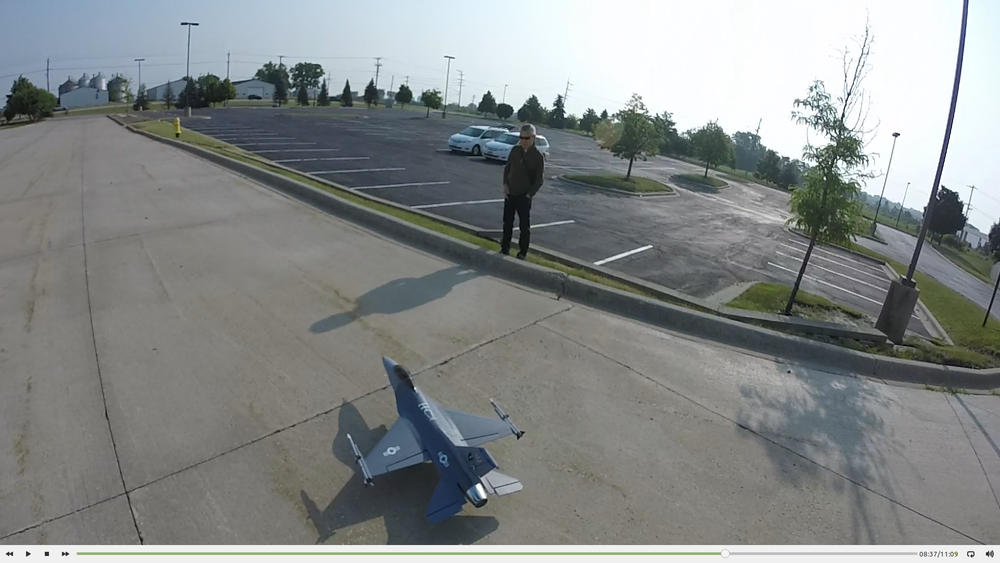

Customer Reviews
- Reviews
F16
Awesome love it
Ok tutto perfetto e veloce
Perfetto complimenti
70mm Fi6
This is a bargain for the cost, the finish is very good. It also Flys very well.
F-16 VR3
Absolutely love this plane!
A real good flier!!
I just flew mine earlier today and it was a blast!! Flew great I just need to get myself more used to the plane but the handling is very good...read more

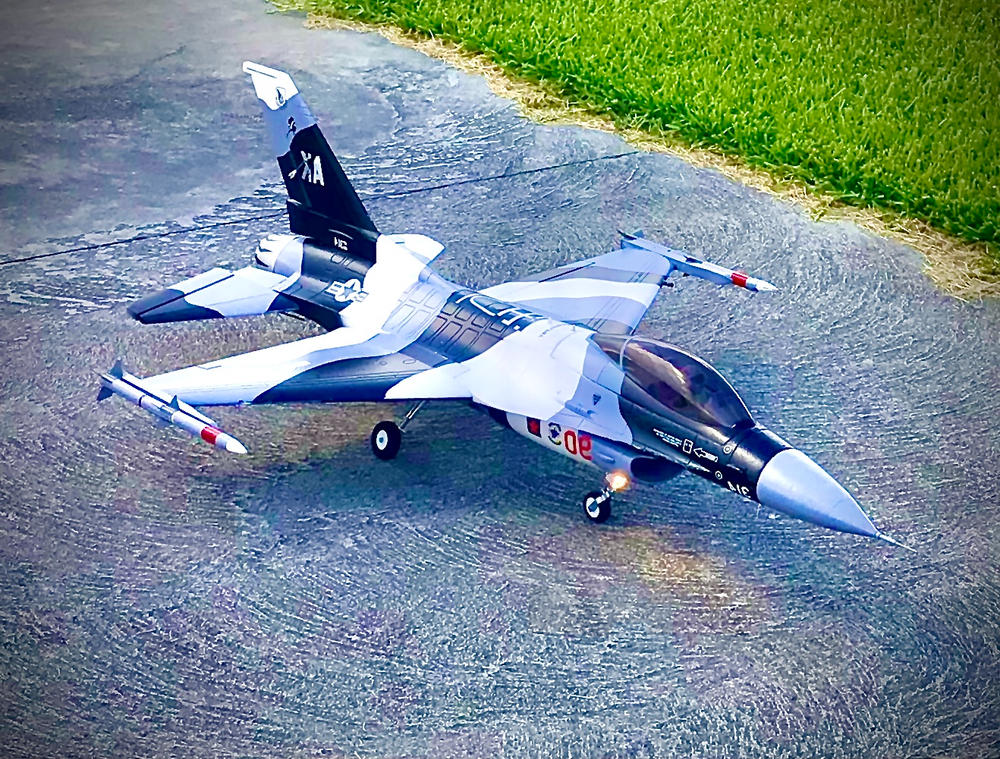

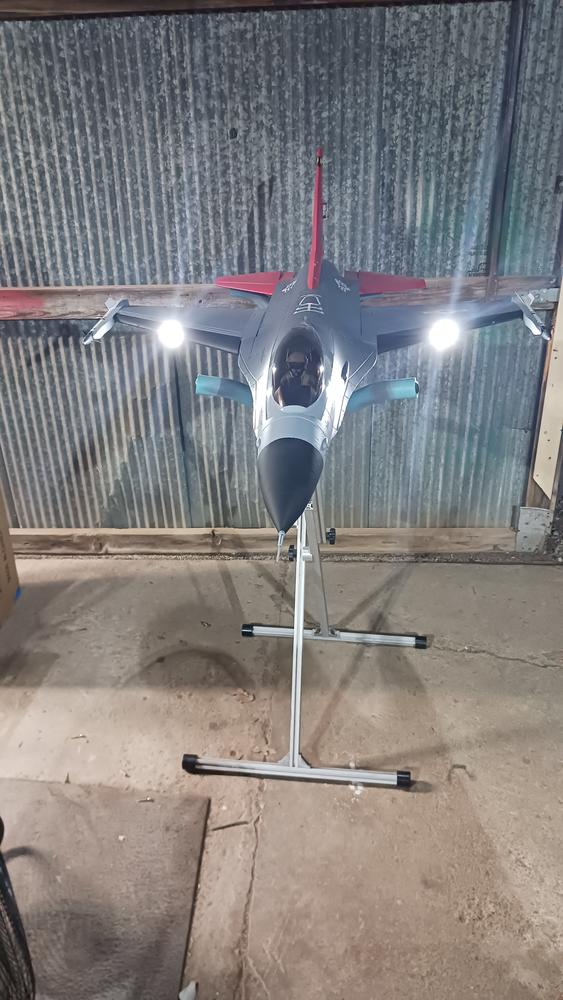

Light mod f16
Love this Lil f16,it looks good.i upgrade mine with lights and afterburner
-
