Freewing 9g Hybrid Servo with 900mm (35") Lead MD31093-900

SKU: MD31093-900

Freewing 9g Hybrid Servo with 900mm (35") Lead

Regular price: ^€12⁶⁹ (VAT inc.)
Sale price: ^€12⁶⁹
Regular price: ^€0⁰⁰; (Save €-12.69)
Unit price: per

In stock

Quantity must be 1 or more

Overview
Q&A

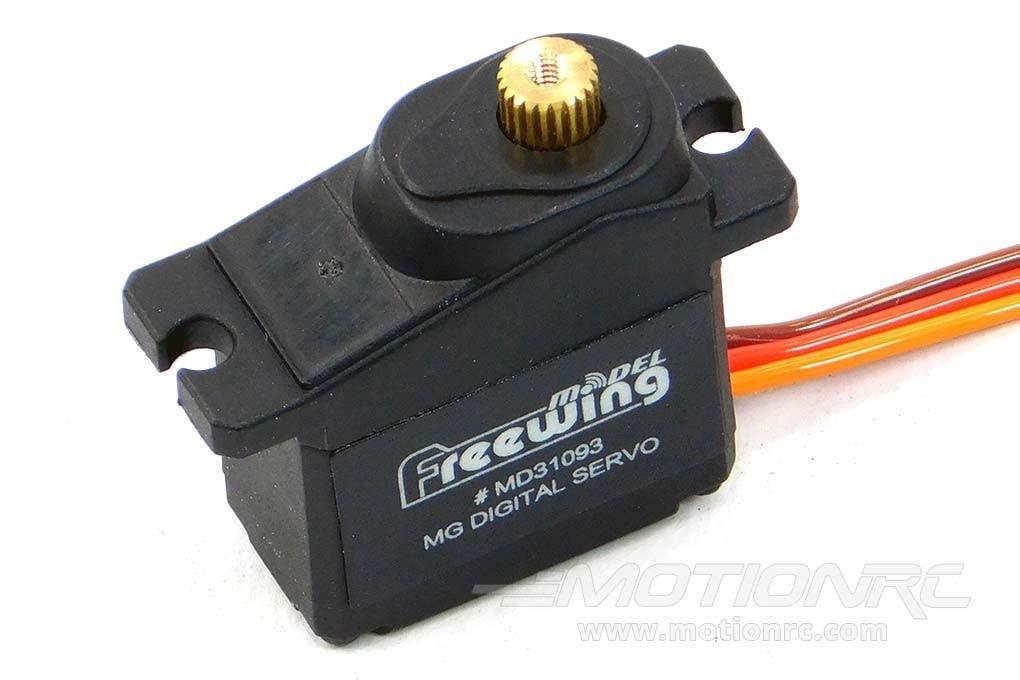

Freewing 9g Hybrid Servo with 900mm (35") Lead - MD31093-900

This servo is used primarily for the Freewing 80mm F-14 cabin door.

Features:

Lightweight, efficient high torque servo perfect for ailerons on various park flyer to mid-sized aircraft

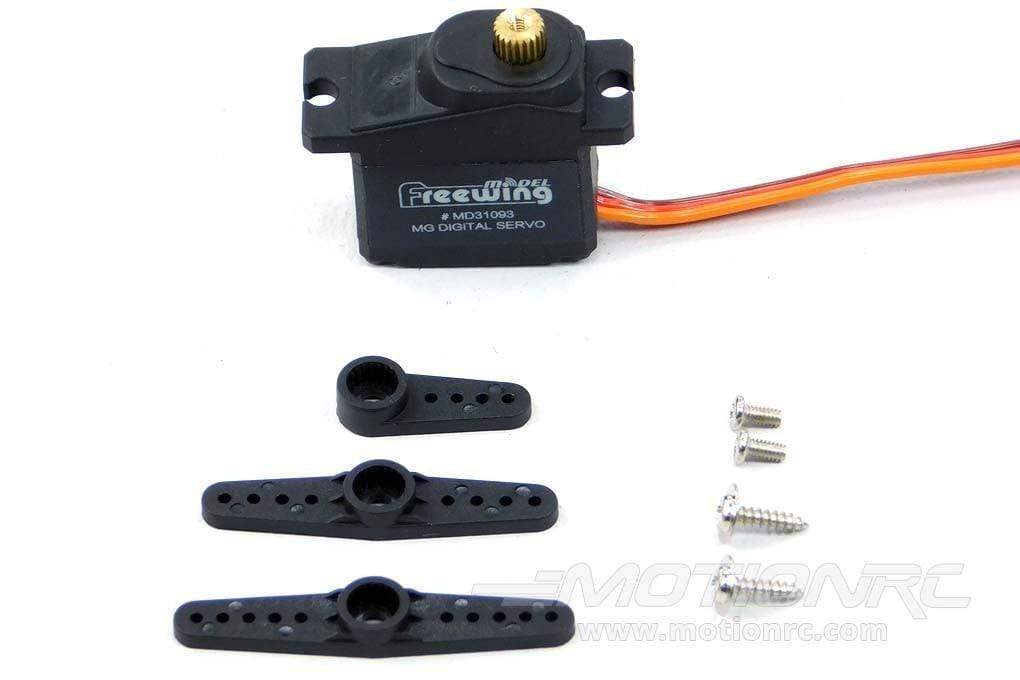

Includes:

Freewing 9g Hybrid Servo with 900mm (35") Lead
4 mounting screws
3 servo horns

Product Specifications:

Servo Class	9g
Servo Type	Digital
Gear Material	Plastic / Metal
Direction	Standard / Normal
Operating Voltage Range	4.8V to 6V
Speed (4.8V)	0.13 sec @ 60 deg
Speed (6V)	0.11 sec @ 60 deg
Torque (4.8V)	1.2 kg/cm (16.6 oz/in)
Torque (6V)	1.5 kg/cm (20.83 oz/in)
Current Draw at Idle	13mA
Current Draw Operating (No Load)	100mA
Dimensions (L x W x H)	23.7 x 12.4 x 26mm
Weight	10g (.35oz)
Lead Length	900mm
