MKS 700/800 Size Helicopter Servo Multi-Pack - Premium Edition

39900
39900
Share:

MKS 700/800 Size Helicopter Servo Multi-Pack - Premium Edition

|
Regular price €399.00 39900 (incl. VAT) Free Shipping*
Status: Only 1 left, order soon!
Share:
MKS6005-001

MKS Premium Edition Servo Multi-Pack for 700 and 800 Size RC Helicopters

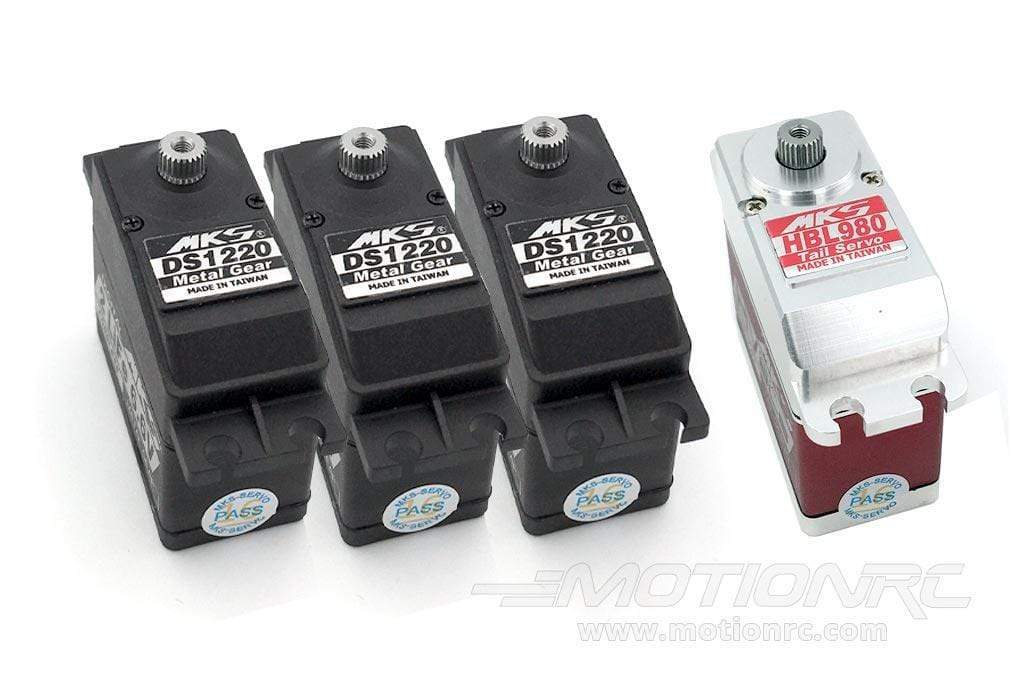

This helicopter multi-pack contains three MKS DS1220 metal gear digital cyclic servos and one MKS HBL980 metal gear digital tail servo. MKS's convenient multi-pack is perfect for any 700 or 800 size scale ARF helicopter setup, with a wide input voltage range. The minimum input voltage range when using these servos in a large  scale helicopter begins at 6.0V, minimum, although the optimal input voltage for maximum performance is 7.4V. We recommend this HV ("High Voltage") 7.4V system voltage for any scale helicopter conversion.

    MKS DS1220 Servo Features:

    • Aluminum body
    • Titanium gears
    • Dual ball bearing output shaft is spill-resistant
    • Created for all around use in RC model cars, airplanes, and helicopters
    • Water/Dust sealed case allows the servo to operate in extreme environments

    MKS HBL980 Servo Features:

    • Chrome/Titanium ally gear train
    • Aluminum center, upper and lower case
    • Impressive reaction, speed, and torque

    Includes:

    • One (1) MKS HBL980 Tail Servo
    • Three (3) MKS DS1220 Cyclic Servos
    • Servo arms
    • Mounting brackets
    • Mounting screws



    Servo Measurement Key

    Product Specifications:

    MKS DS1220 Digital Servo

    Servo Class

    57.4g

    Servo Type

    Digital

    Gear Material

    Metal

    Direction

    Standard / Normal

    Operating Voltage Range

    6V to 6.8V

    Speed (6V)

    0.15 sec @ 60 deg

    Speed (6.8V)

    0.14 sec @ 60 deg

    Torque (6V)

    24.9 kg/cm (345.9 oz/in)

    Torque (6.8V)

    30.4 kg/cm (422.17 oz/in)

    Current Draw at Idle

    N/A

    Current Draw Operating (No Load)

    N/A

    Dimensions (L x W x H)

    40 x 20 x 37mm

    Weight

    57.44g (2.02oz)

    Lead Length

    N/A

    MKS HBL980 Digital Servo

    Servo Class

    Standard

    Servo Type

    Digital

    Gear Material

    Titanium

    Direction

    Standard / Normal

    Operating Voltage Range

    6.0V - 7.4V

    Speed (6.0V)

    0.04 sec @ 60 deg

    Speed (7.4V)

    0.036 sec @ 60 deg

    Torque (6.0V)

    4.5 kg/cm (62.5 oz/in)

    Torque (7.4V)

    5.6 kg/cm (77.77 oz/in)

    Dimensions (L x W x H)

    40 x 20 x 40mm

    Weight

    70.2g (2.48oz)
