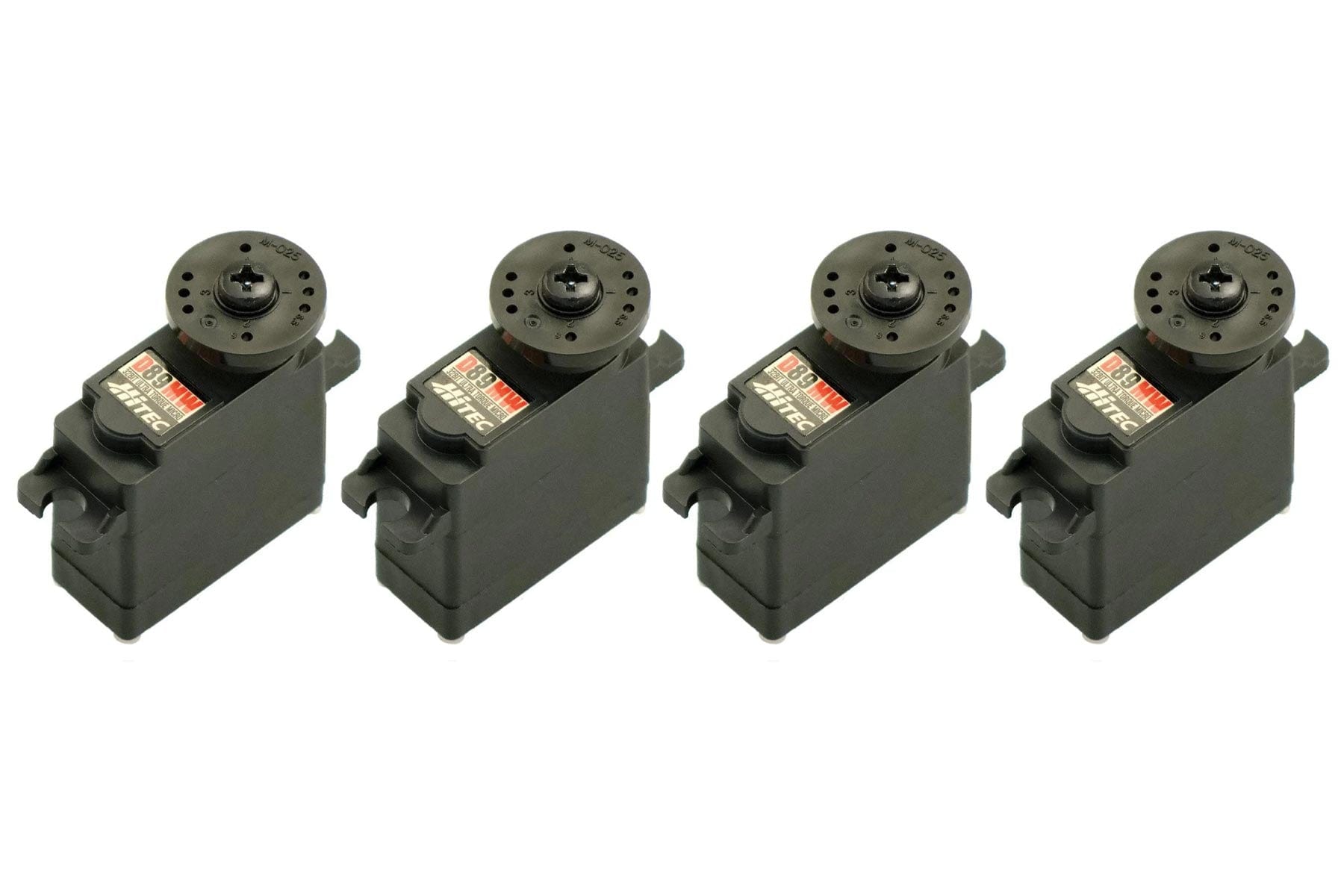

D89MW 32-Bit Wide Digital Voltage Metal Gear Micro Servo Multi-Pack (4 Servos) from Hitec - HRC6005-036
With 32-bit high resolution, ultra-response technology and wide voltage operation, the mighty micro-sized D89MW delivers solid power in a lightweight package. Its efficient coreless motor makes this mini servo a standout in its class.
Features:
- 32-Bit MCU with 12-Bit ADC Circuitry
- 4096 Resolution
- 1M Cycle Long Life Potentiometer
- Operates on 4.8V-7.4V
- Dual Ball Bearings
- Coreless Motor
- Nylon Reinforced Plastic Case
Programmable Functions:
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Data Save / Load
- Program Reset
Includes:
- Hitec D89MW 32-Bit Wide Digital Voltage Metal Gear Micro Servo Multi-Pack (4 Servos)
- Horns and mounting gear
Product Specifications:
Servo Class |
Micro |
Servo Type |
Digital |
Gear Material |
Metal |
Direction |
Standard / Normal |
Operating Voltage Range |
4.8V to 7.4V |
Speed (4.8V) |
0.17 sec @ 60 deg |
Speed (6V) |
0.11 sec @ 60 deg |
Torque (4.8V) |
5.3 kg/cm (74 oz/in) |
Torque (6V) |
8.5 kg/cm (118 oz/in) |
Current Draw at Idle |
30mA |
Current Draw Operating (No Load) |
300mA |
Dimensions (L x W x H) |
29.0 x 13.0 x 30.0mm |
Weight |
25.0g/0.88oz. |
Lead Length |
260mm |
