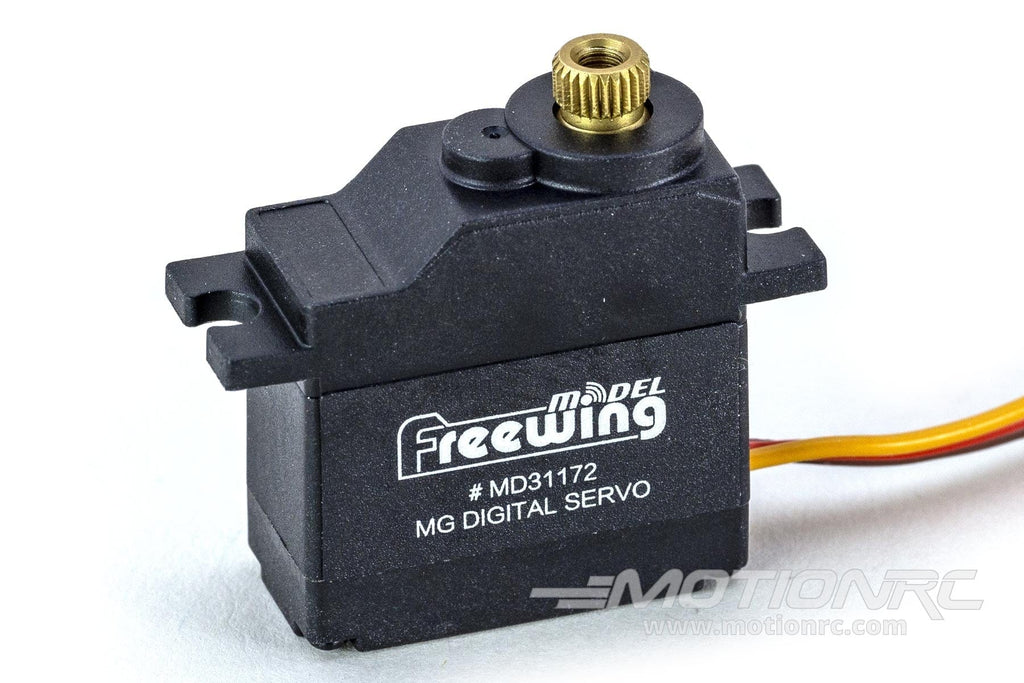

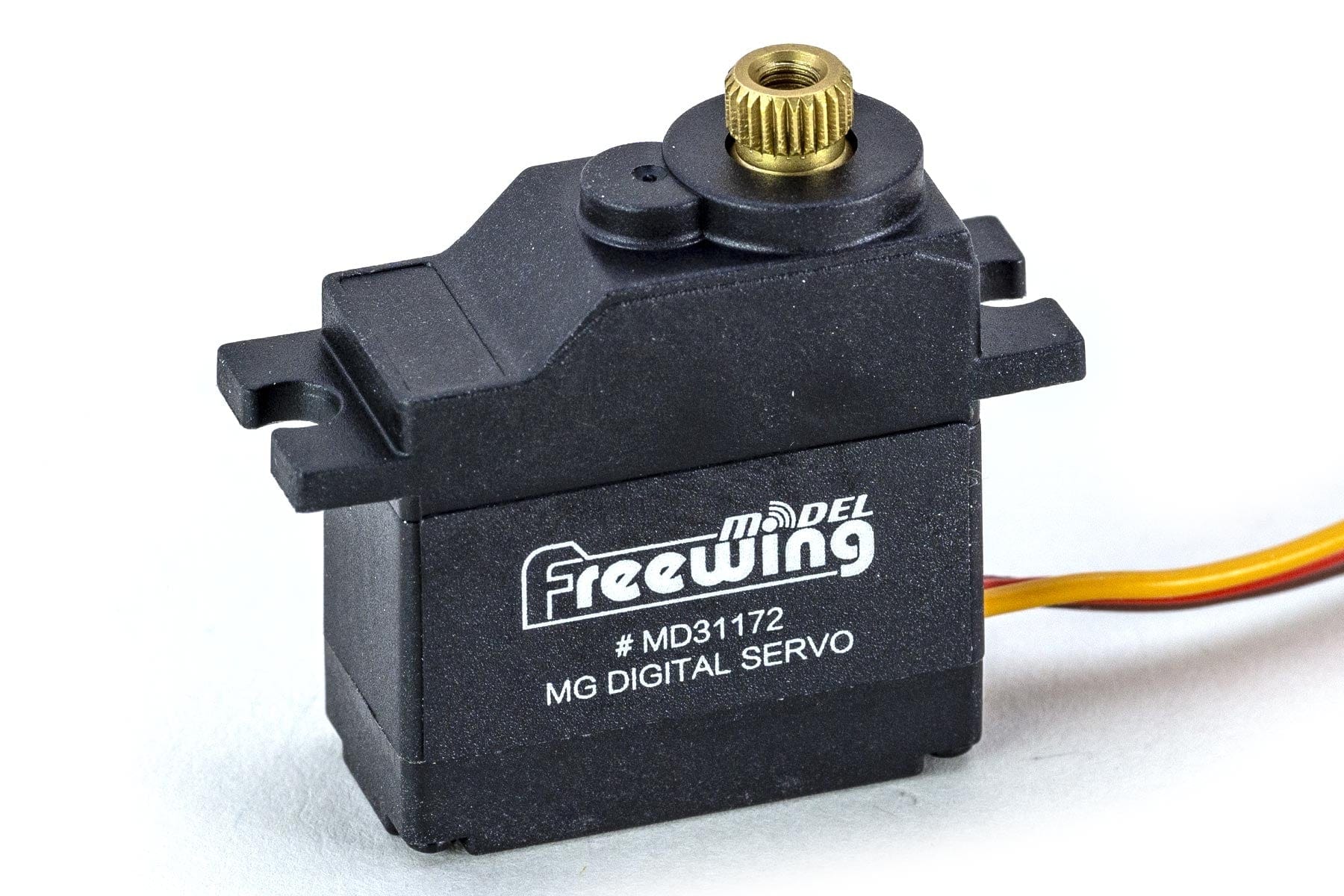

17g Digital Metal Gear Servo with 1200mm (47") Lead from Freewing - MD31172-1200
This servo is used on various Freewing airplanes. It can be used with other aircraft with compatible specifications (see below).
Features:
- Lightweight, efficient high torque metal gear servo perfect for various EDF jets in the 70/80/90mm class

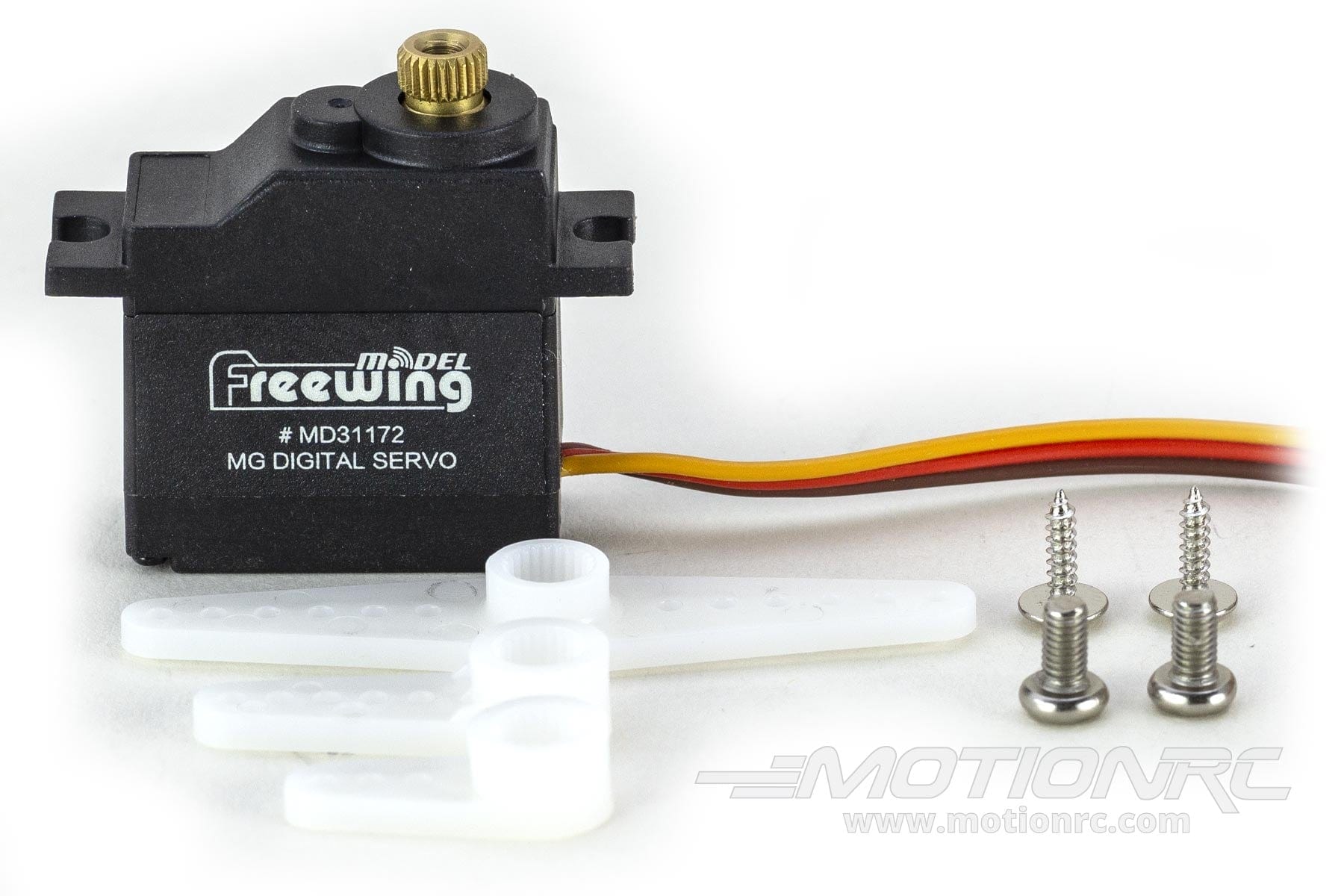

Includes:
- Freewing 17g Digital Metal Gear Servo with 1200mm (47") Lead
- 4 mounting screws
- 2 servo horns
Product Specifications:
Servo Class |
17g |
Servo Type |
Digital |
Gear Material |
Metal |
Direction |
Normal / Standard |
Operating Voltage Range |
4.8V to 6V |
Speed (4.8V) |
0.17 sec @ 60 deg |
Speed (6V) |
0.15 sec @ 60 deg |
Torque (4.8V) |
2.3 kg/cm (60 oz/in) |
Torque (6V) |
2.6 kg/cm (60 oz/in) |
Current Draw at Idle |
18mA |
Current Draw Operating (No Load) |
130-200mA |
Dimensions (L x W x H) |
29.5 x 13.1 x 30mm |
Weight |
20g (.70oz) |
Lead Length |
1200mm |
