Castle Creations Talon 90A ESC with 20A BEC
Quick links
Share:
010-0097-00

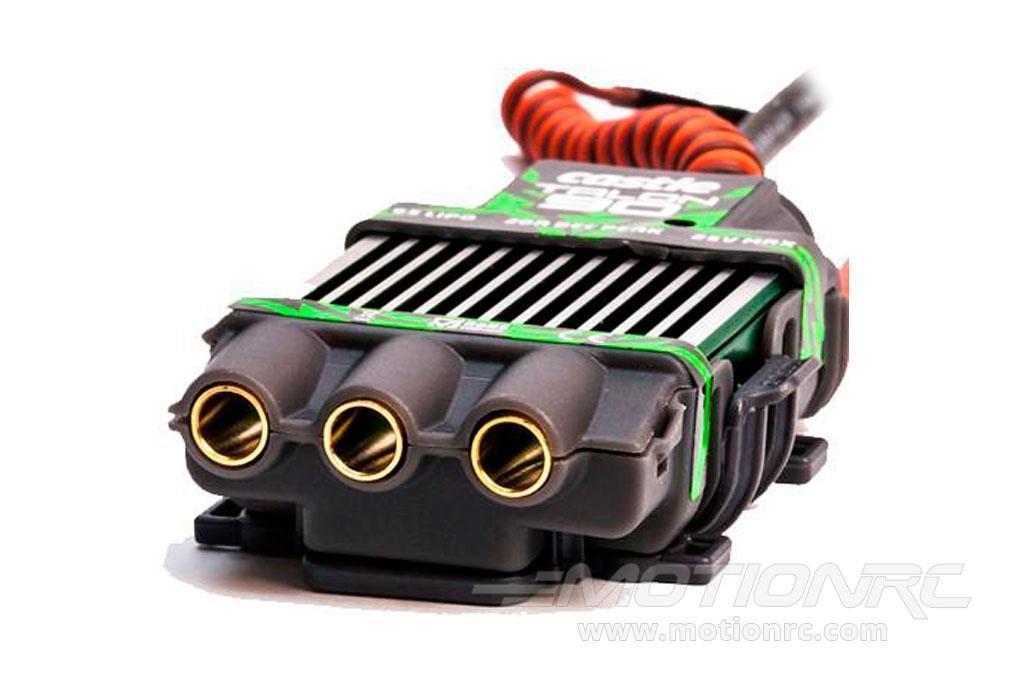

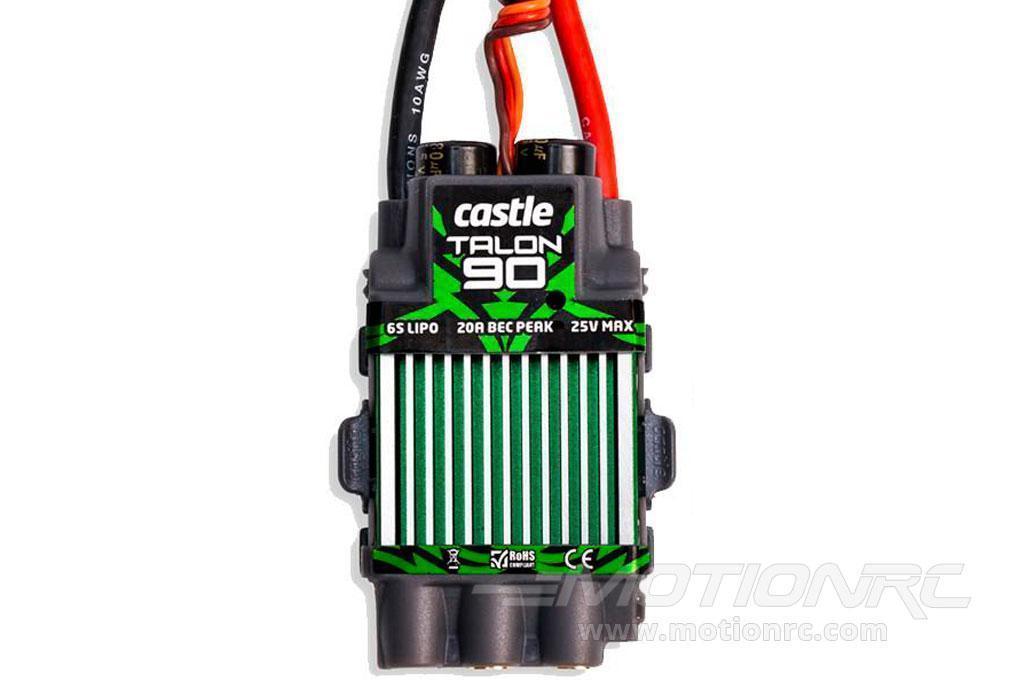

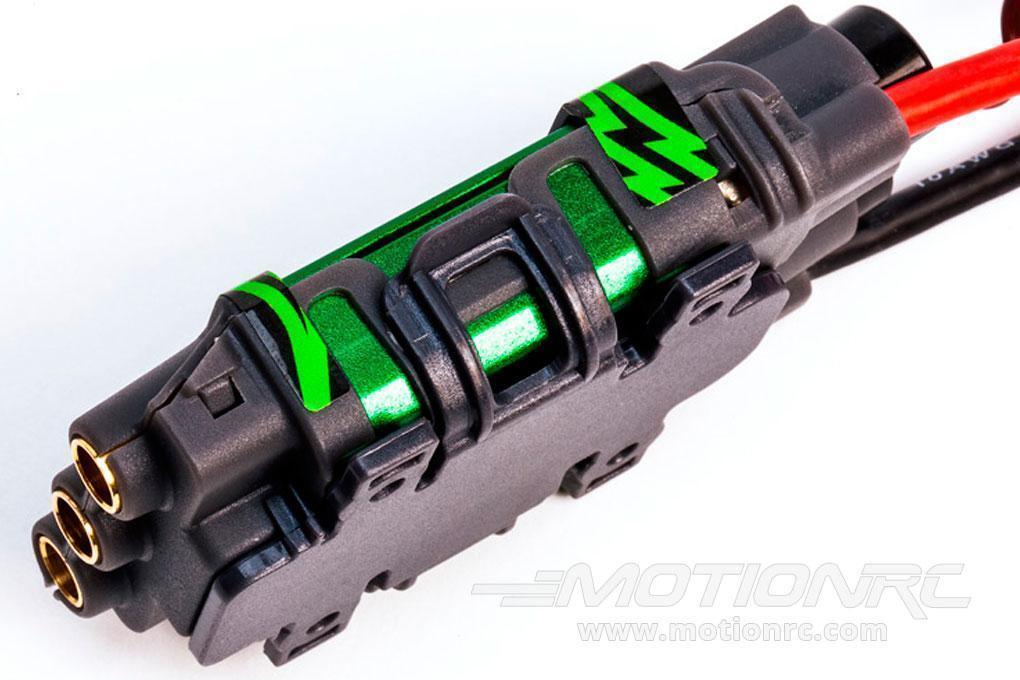

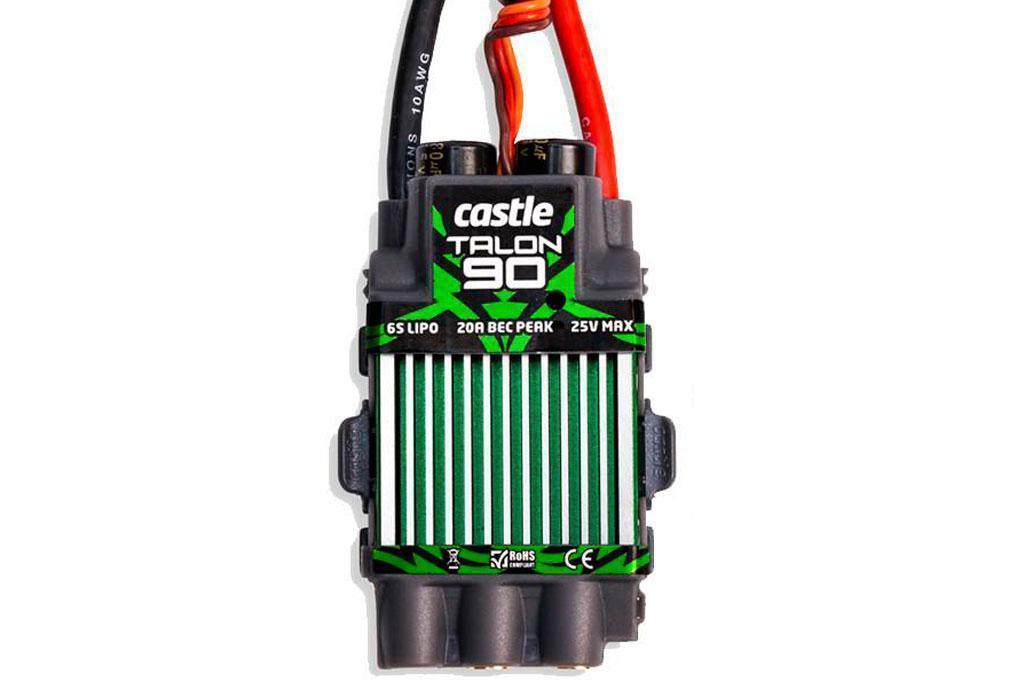

Talon 90A ESC with 20A BEC from Castle Creations - 010-0097-00
It's hard to go wrong with Castle Creation ESCs. With the Talon 90 you get a whopping 20 amp BEC that pumps out 20 amps of peak power with 9 amps of continuous power to feed those hungry servos. Ideal for helicopters like the Roban 500 series running 6S LiPo power. Works fantastic for 3D airplanes up to 10 pounds and scale warbirds up to 20 pounds.
Features:
- Designed for 500-size helicopters but great for fixed wing up to 20 pounds as well
- Impressive 20 amp BEC to feed those insatiable servos
- Premium performance at a great price
- Programmable using the Castle PHX-LINK USB Cable
Includes:
- Castle Creations Talon 90A ESC with 20A BEC
- Female 5.5mm bullets added, male 5.5mm bullets included (will need to be added to the motor)
Requires:
- Battery connectors - select your choice of connector in our Battery Connector Collection
Product Specifications:
Length |
79.75mm / 3.14in |
Width |
43.18mm / 1.70in |
Height |
17.78mm / 0.70in |
Weight |
84.5g |
MAX Output |
Continuous Current 90A |
Burst Output |
100A (10s) |
Battery |
3-6Lipo |
BEC Output |
20A Peak, 9A Continuous |
Power Connector |
None |
Motor Connector |
5.5mm bullets |
Product Spare Parts
Product Questions & Answers
NOTE: Questions submitted on this page are answered by customers who have previously purchased this item. If you have a support related question that requires immediate assistance, please visit our Help Center.Product Support
Product Manuals:
Product Updates:
- November 18, 2016 - Castle Creations ESCs are NOT compatible with Freewing motors. ZTW brand ESCs are recommended upgrades when using a Freewing motor.
