F-22 Raptor High Performance 70mm EDF Jet - (Plug-N-Play) - PNP - from Freewing - FJ22211P

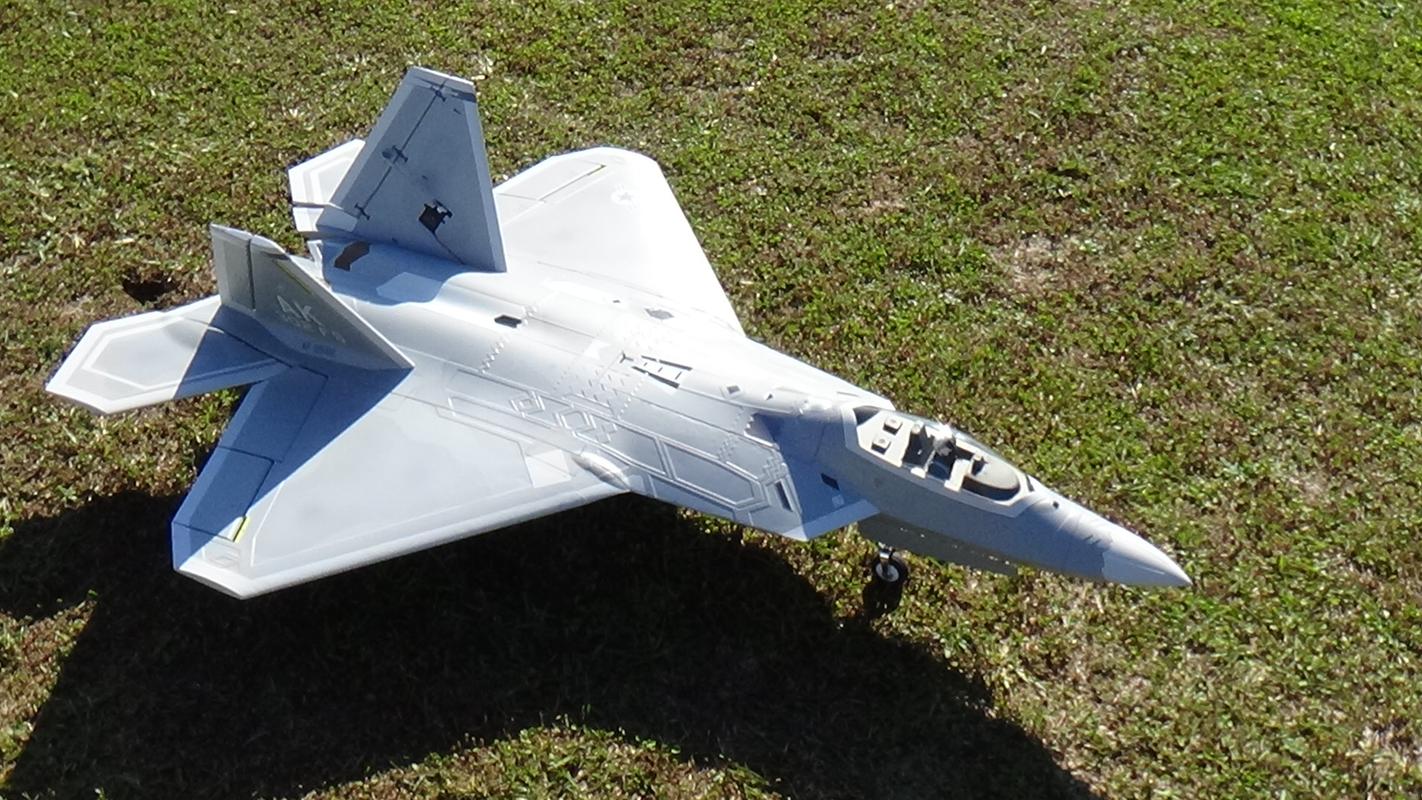

Take command of the skies with the Freewing F-22 Raptor 70mm EDF, a jet designed to captivate with its scale realism and ease of use. Featuring highly detailed surfaces with molded-in panel lines and sequenced nose gear doors, this model delivers an authentic, visually stunning experience. The screwless, quick-release main wings make assembly and transport effortless, while CNC-machined aluminum shock absorbing struts help ensure smooth landings. Powered by a 12-blade 70mm EDF power system that offers reliable performance and precise control, the F-22 is perfect for pilots seeking both speed and agility in the air.
Whether you're a seasoned EDF pilot or looking to take your first steps into the world of jet-powered flight, the 70mm EDF F-22 delivers the performance, realism, and convenience you need to make every flight unforgettable.
Visit the Official Freewing 70mm F-22 Raptor Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
 |
Quick Release Wings Enjoy effortless assembly and disassembly with the innovative quick release wing system. |
 |
Highly Detailed Highly detailed surfaces with molded panel lines for a realistic appearance. |
 |
CNC-Machined Aluminum Struts CNC-machined aluminum shock absorbing struts accentuate the scale appearance and help you achieve smooth landings. |
 |
Well-Protected Plastic corner protection located in key areas to help prevent hangar rash. |
 |
Sequenced Nose Gear Doors Sequenced nose gear doors were added for enhanced scale realism and lower drag. |
 |
Powerful Performer Impressive power and speed with the 2957-2210Kv inrunner motor, 12 blade EDF and thrust reversing with the included 80A ESC. |
Features:
- Screwless, quick-release main wings for easy assembly and transport
- CNC-machined aluminum shock absorbing struts accentuate the scale appearance
- Sequenced nose gear doors for enhanced scale realism
- Highly detailed surfaces with molded panel lines for a realistic appearance
- 12-blade 70mm EDF for powerful, smooth thrust
- 2957-2210Kv Inrunner Motor for high-performance speed and efficiency
- 80A ESC with thrust reversing, 7A UBEC and EC5 connector for advanced control
- Plastic corner protection located in key areas like intake leading edges, wing tips and the trailing edge of the fuselage to help prevent hangar rash
- Spring-loaded battery hatch for quick and easy battery access
- Carbon fiber wing spars for strength and light weight
- Ball linkages on all control surfaces for precise control
- Nylon hinges for long-lasting durability
Includes:
- Freewing F-22 Raptor High Performance 70mm EDF Jet – PNP
- 12-blade 70mm EDF Power System (installed)
- 2957-2210Kv Inrunner Motor (installed)
- 80A ESC with reverse thrust and EC5 connector (installed)
- Electronic, retractable landing gear (installed)
- Servos (installed)
Requires:
- 6-7 Channel radio (7 required for Reverse Thrust) - select a minimum 6 channel radio from our Radio Collection
- 6-7 Channel receiver (7 required for Reverse Thrust) - select a minimum 6 channel receiver from our Receiver Collection
- 6 Cell 22.2V 4000 mAh LiPo battery with EC5 connector - we recommend the Admiral Pro 4000mAh 6S 22.2V 60C LiPo Battery with EC5 Connector
- 6 Cell compatible battery charger - select a minimum 6 cell (6S) charger from our Charger Collection
Product Specifications:
Scale |
1/16 |
Wingspan |
816mm / 32.1in |
Length |
1150mm / 45.3in |
Weight |
1.74kg (3.83lbs) without battery |
CG (Center of Gravity) |
108mm from the leading edge of the wing at the root |
Power System |
2957-2210Kv Brushless In-Runner Motor |
Electronic Speed Control |
80 Amp with 7A UBEC and thrust reversing |
Propeller / EDF |
70mm 12-Blade |
Servos |
|
Landing Gear |
Retractable landing gear with CNC-machined aluminum, shock absorbing struts |
Required Battery |
6 Cell 22.2V 3500-5000mAh Li-Po battery with EC5 Connector |
Required Radio |
6-7 channels (7 required for thrust reversing) |
Ailerons |
Yes |
Elevator |
Yes |
Rudder |
Yes |
Flaps |
Yes |
Lights |
No |
Hinge Type |
Nylon |
Material |
EPO Foam |
Skill Level |
Intermediate |
Build Time |
1 Hour |
Recommended Environment |
Outdoor |
