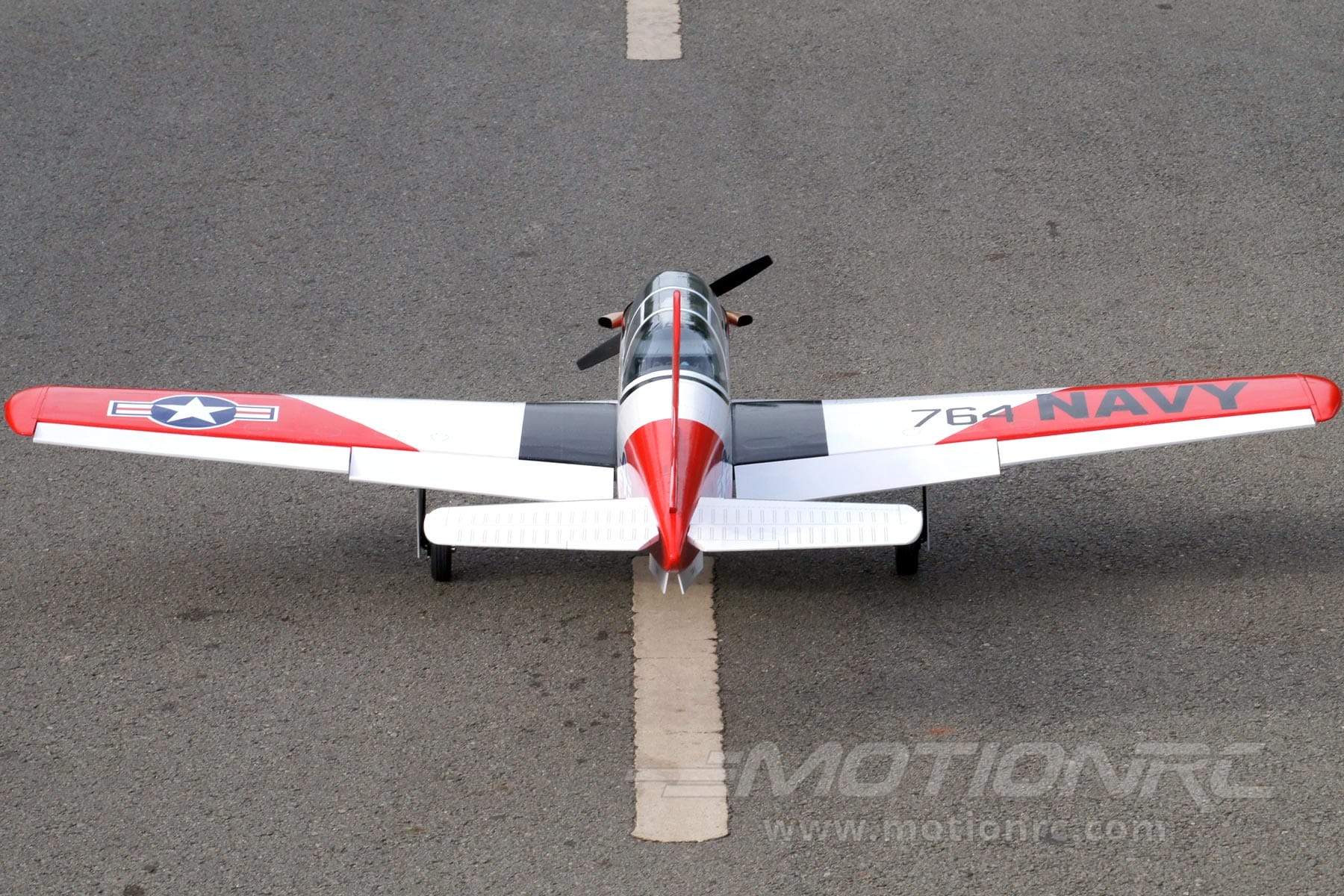

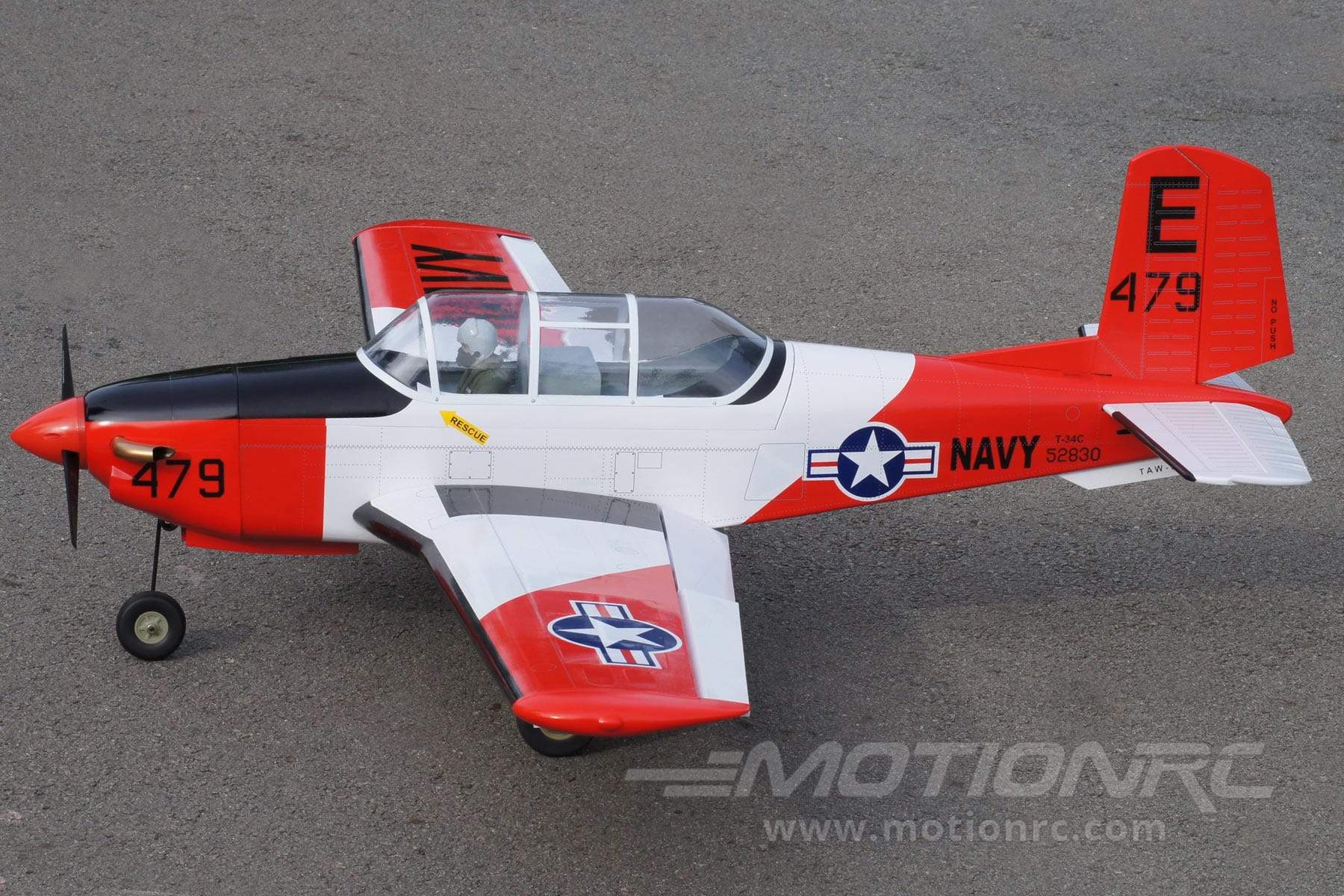

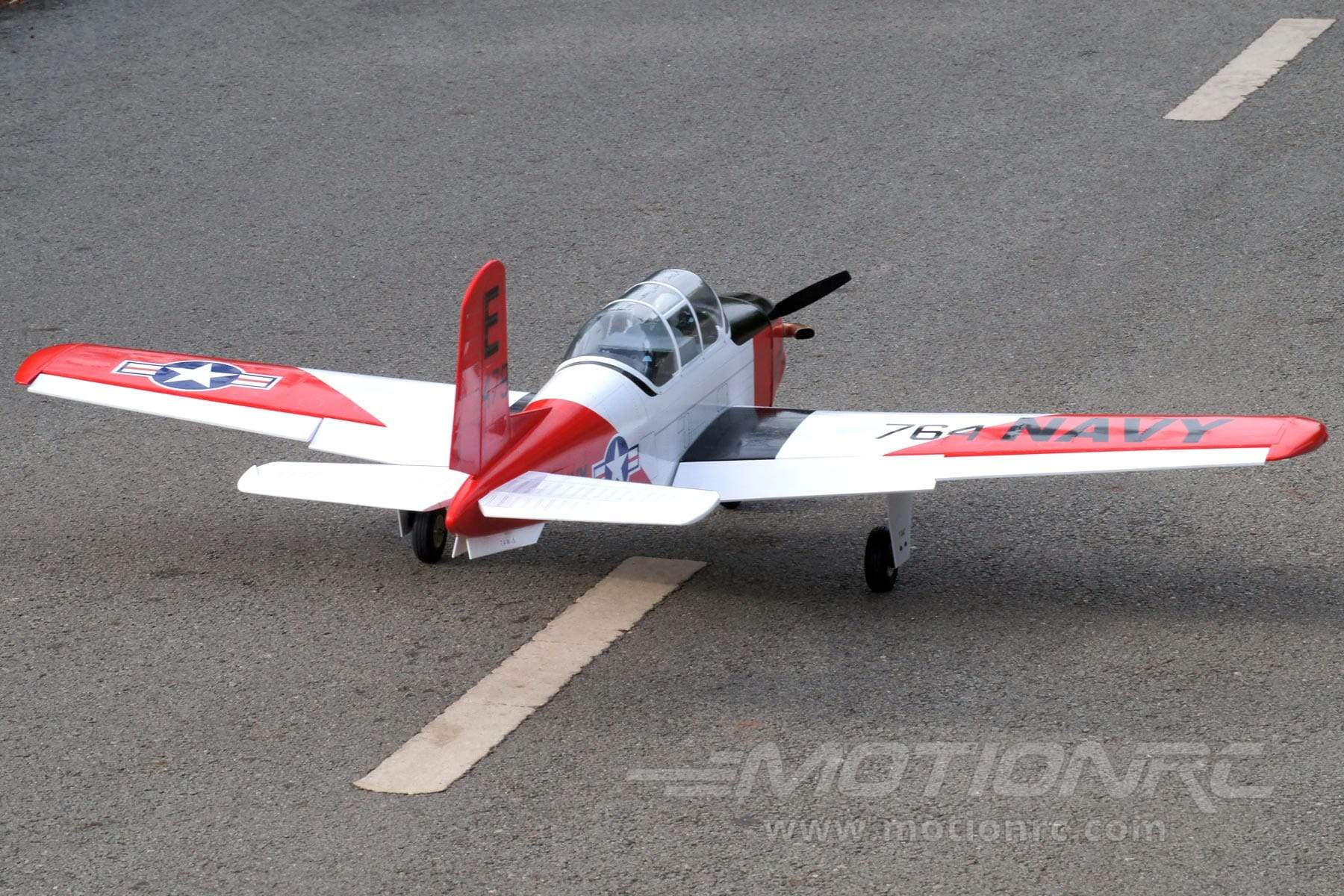

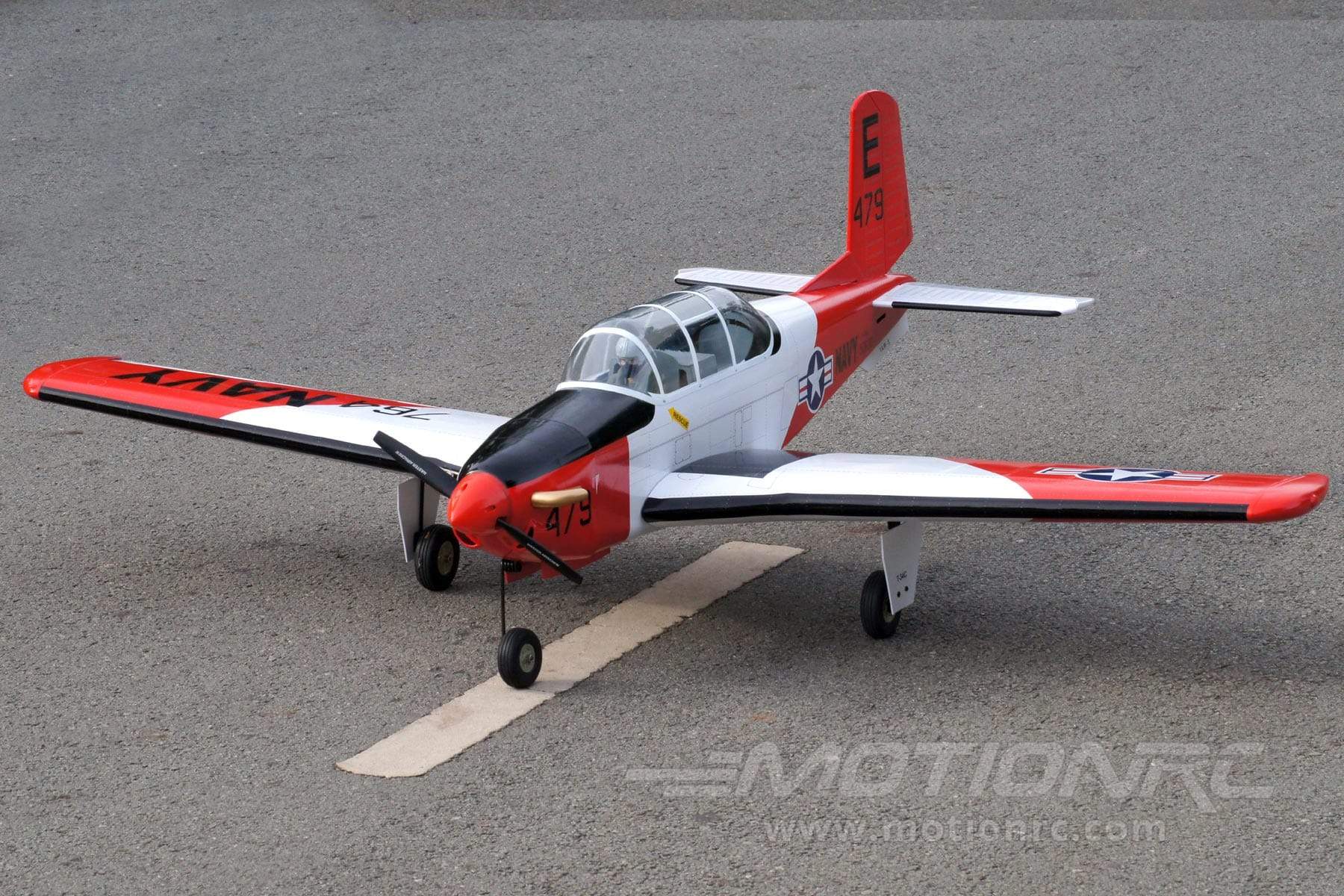

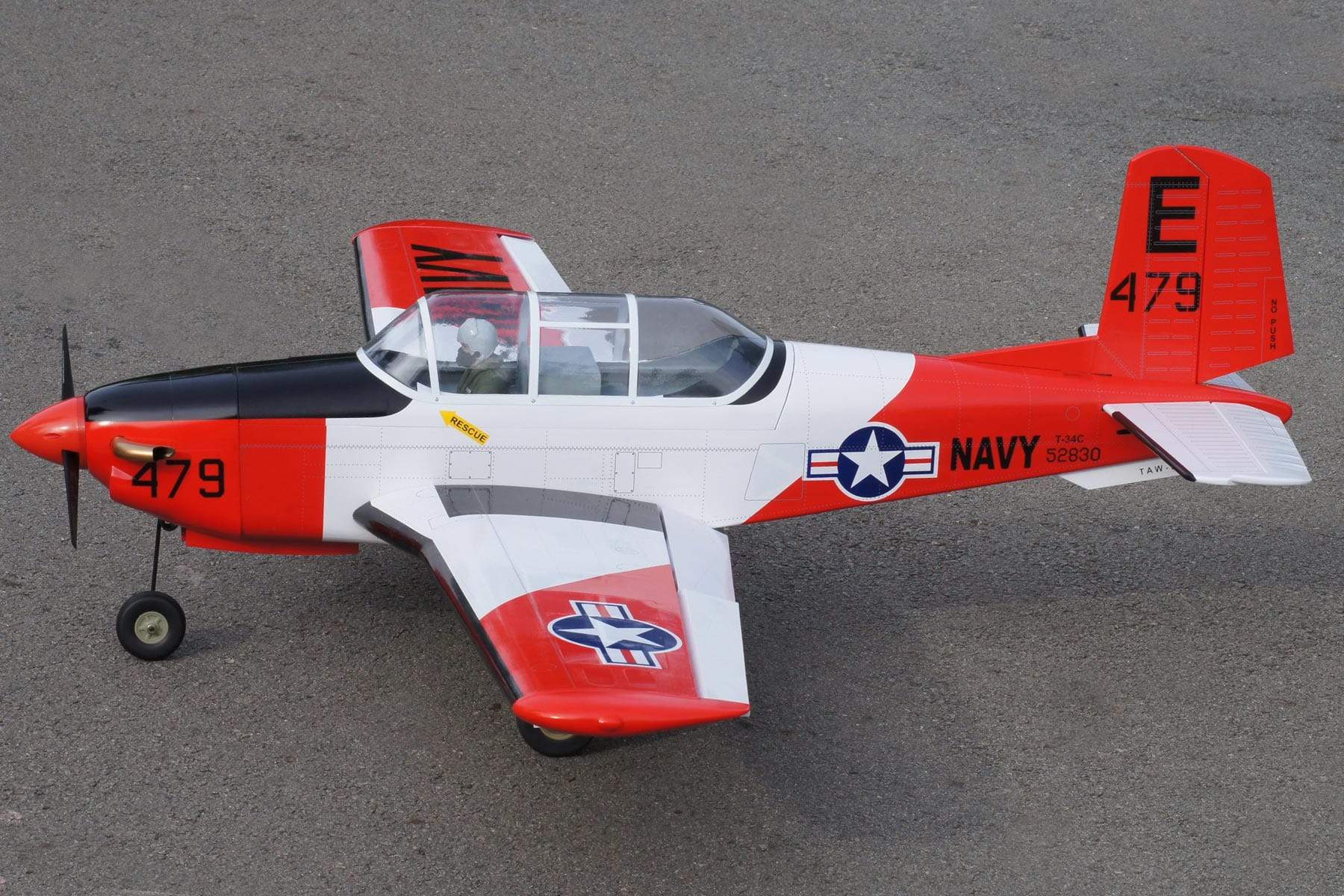

T-34C Turbo Mentor 1560mm (61.4") Wingspan - ARF from Nexa - NXA1020-001
The Beechcraft T-34 Mentor is an American propeller-driven, single-engined, military trainer aircraft derived from the Beechcraft Model 35 Bonanza. The earlier versions of the T-34, dating from around the late 1940s to the 1950s, were piston-engined. These were eventually succeeded by the upgraded T-34C Turbo-Mentor, powered by a turboprop engine. The T-34 remains in service more than six decades after it was first designed.
The Nexa T-34C Turbo Mentor is a .50 size electric or gas option scale series warbird with a 1560mm wingspan, constructed primarily from balsa wood and covered with a fuel-resistant covering. This ARF requires assembly and installation of your choice of servos and power system, and includes flaps, painted pilot and other scale details. The large battery hatch affords ample room for either electric or gas setups. Impress at your flying field with this iconic stunner!
Visit the Official Nexa T-34C Turbo Mentor 1560mm ARF Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
 |
Fully Covered and Detailed The Nexa T-34C Turbo Mentor comes fully covered including simulated panel lines, rivets, nomenclature and weathering detail. |
 |
Scale Details Throughout There is no shortage of scale details with this T-34C including functional flaps and painted pilot. |
 |
Prehinged and Installed Control Surfaces All control surfaces come out of the box fully prehinged and installed for your convenience. |
 |
Large Battery Hatch The T-34C has a large battery hatch area to fit an array of LiPo battery sizes. |
Features:
- Complete Balsa and lite-ply construction for rigidity and durability
- Covered from tip to tail in scale details including weathering, functional flaps, printed simulated panel lines and rivets

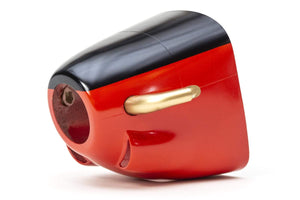

- Fiberglass cowling for strength and durability
- The hand-painted pilot is ready for your added cockpit details
- All control surfaces come out of the box pre-hinged and installed for convenience
- Large battery hatch allows for your chosen electric or gas setup
Includes:
- Nexa T-34C Turbo Mentor 1560mm (61.4") Wingspan - ARF
- Wheels

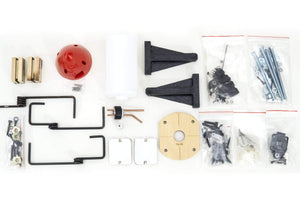

- Fuel tank, hardware and servo trays
Requires:
- 7 Channel radio - select a minimum 7 channel radio from our Radio Collection
- 7 Channel receiver - select a minimum 7 channel receiver from our Receiver Collection
- Brushless outrunner motor - we recommend the Admiral GP10 5030-400Kv Brushless Motor
- 65 Amp brushless ESC - we recommend the ZTW Mantis G2 65A ESC with 8A SBEC
- 5x standard servos for ailerons, elevator and rudder - we recommend Hitec HS-485HB Deluxe Ball Bearing Karbonite Gear Standard Servo Airplane Multi-Pack (4 Servos)
- 2x standard servos for flaps - we recommend TWO Hitec HS-225MG Ball Bearing Metal Gear Mighty Mini Servo
- Electric retract for nose gear - we recommend Nexa 46-60 Size Nose Retract
- Electric retracts for main gear - we recommend Nexa Main Retract (1 Pc)

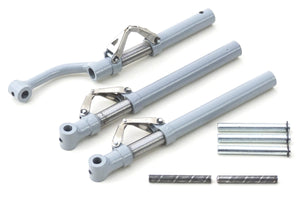

- Struts - we recommend Nexa 1560mm T-34C Turbo Mentor Scale Strut Set
- 6 Cell 22.2V 4000 mAh LiPo Battery - we recommend the Admiral 4000mAh 6S 22.2V 40C LiPo Battery with XT60 Connector
- Electric propeller - we recommend the APC 15x8 Thin Electric Propeller - Black
- 6 Cell compatible battery charger - select a minimum 6 cell (6S) charger from our Charger Collection
Gas Requires:
- 4 stroke engine
- 2 blade gas propeller - we recommend the APC 15x8 Gas Propeller
Nexa ARF models are constructed out of balsa wood and plywood. These are not foam models. The assembly of balsa wood ARF aircraft requires basic model building skills including the installation of servos, ESC, and motor (or gas engine).
Product Specifications:
Model Scale |
1/7 |
Wingspan |
1560mm / 61.4in |
Length |
1170mm / 46in |
Weight |
3200g / 112.8oz |
CG (Center of Gravity) |
128mm from the leading edge of the wing's root |
Power System |
400Kv Brushless outrunner motor for electric or 4-stroke for gas (required) |
Electronic Speed Control |
65A (required) |
Propeller / EDF |
15x8 2-blade for electric or 15x8 gas 2-blade for gas (required) |
Servos |
|
Landing Gear |
Electric retractable (required) |
Required Battery |
6 Cell 22.2V 4000 mAh LiPo Battery (required) |
Required Radio |
7+ Channel (required) |
Ailerons |
Yes |
Elevator |
Yes |
Rudder |
Yes |
Flaps |
Yes |
Lights |
No |
Hinge Type |
Nylon |
Material |
Balsa and light plywood |
Skill Level |
Intermediate |
Build Time |
6+ Hours |
Recommended Environment |
Outdoors |

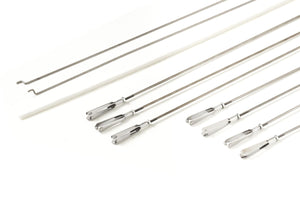

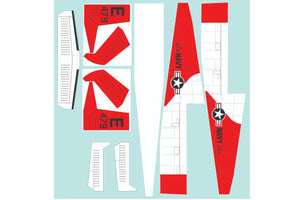

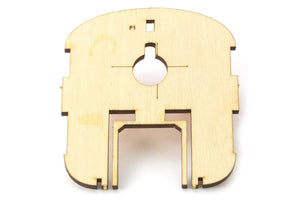

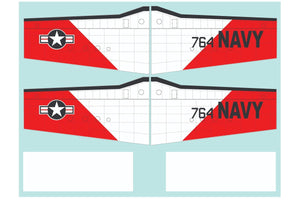

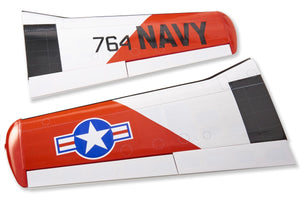

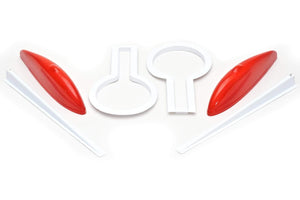

Spare Parts
