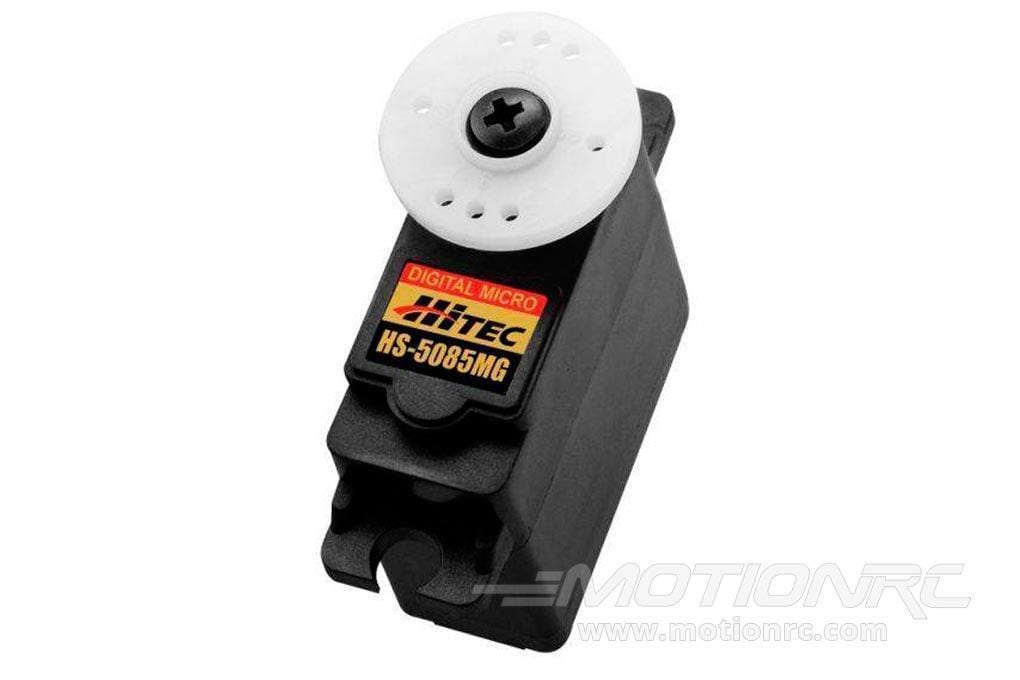

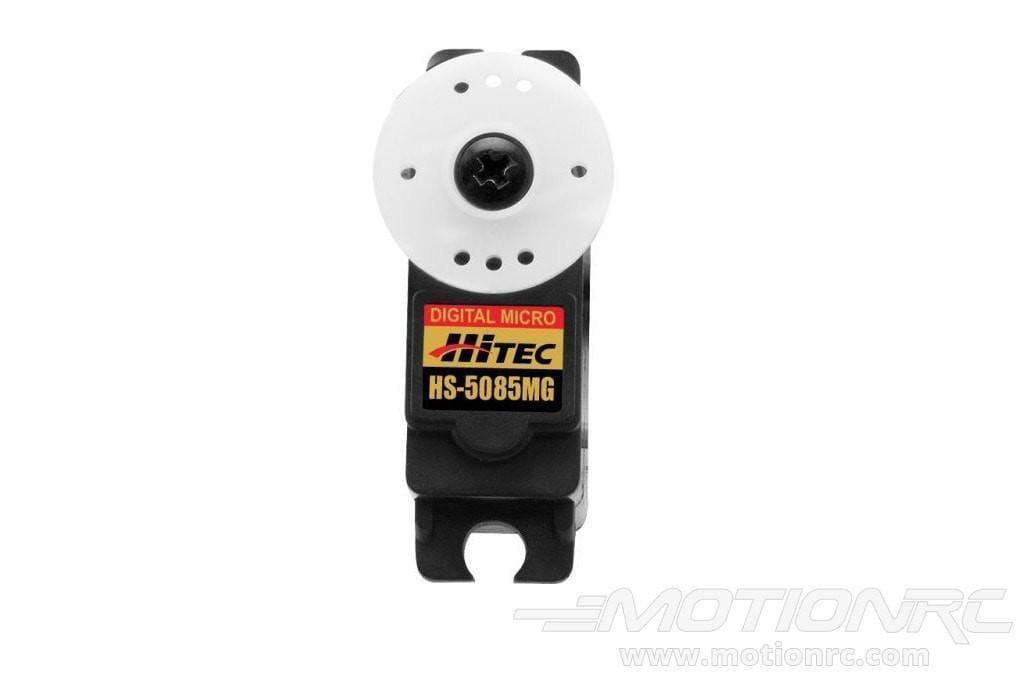

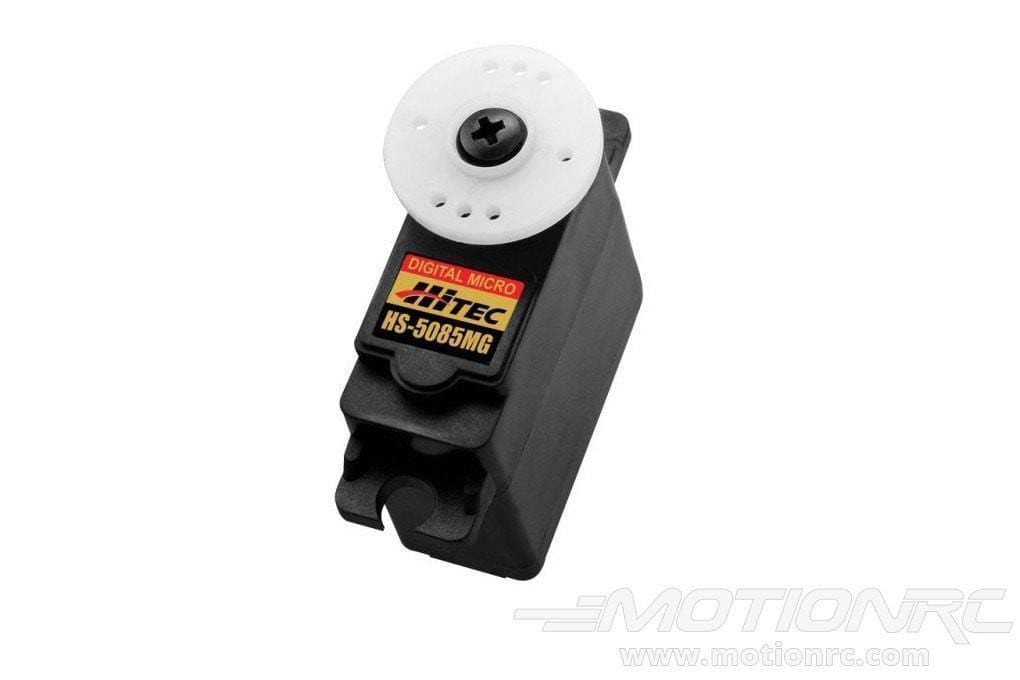

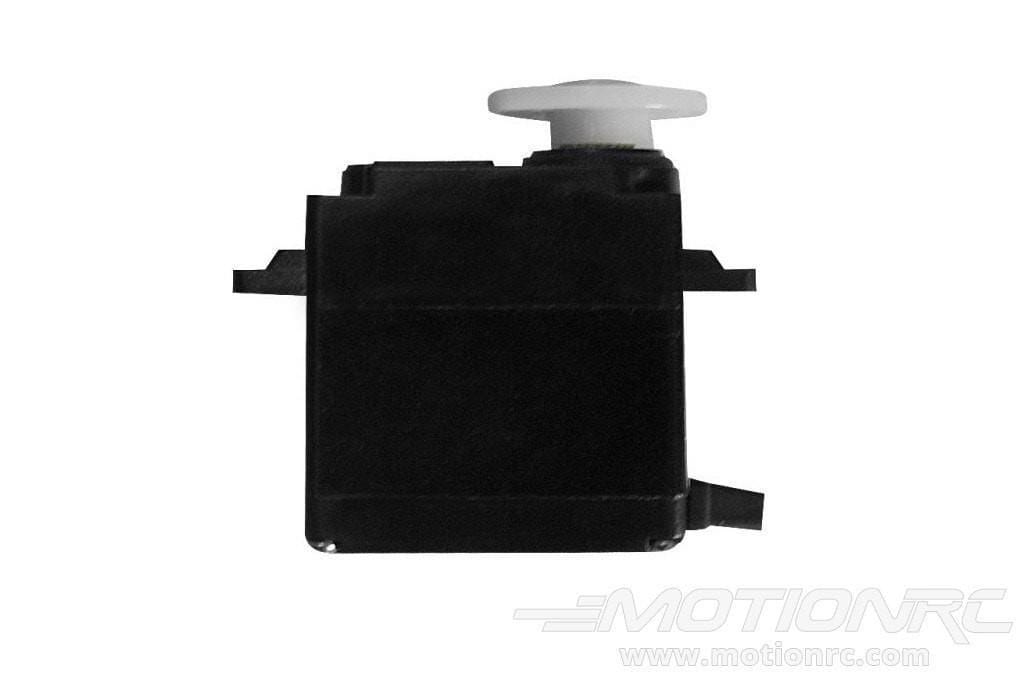

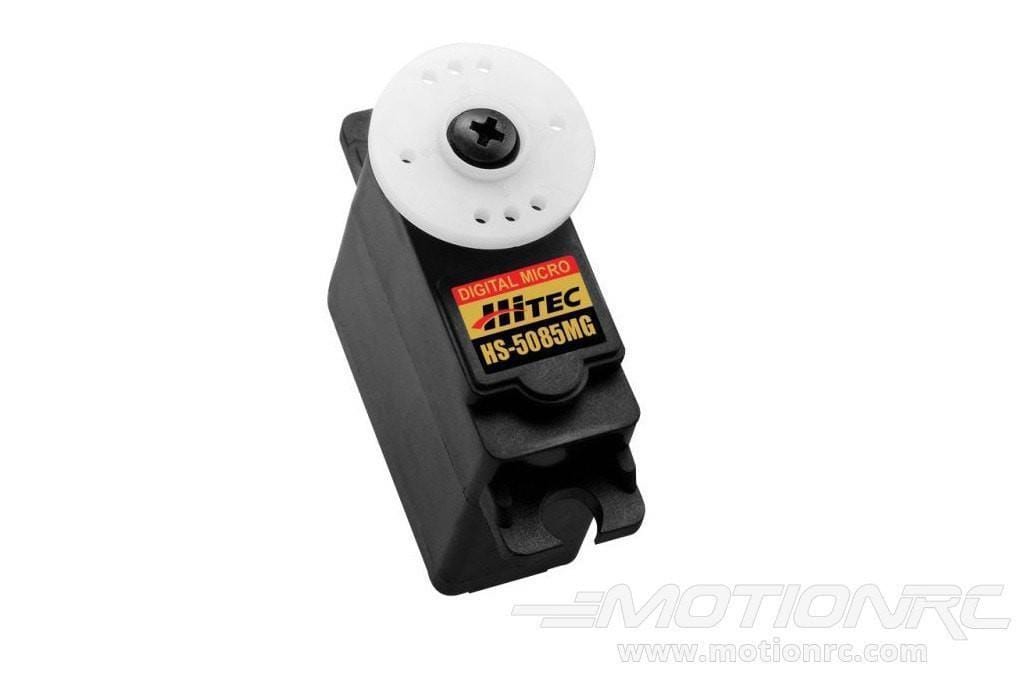

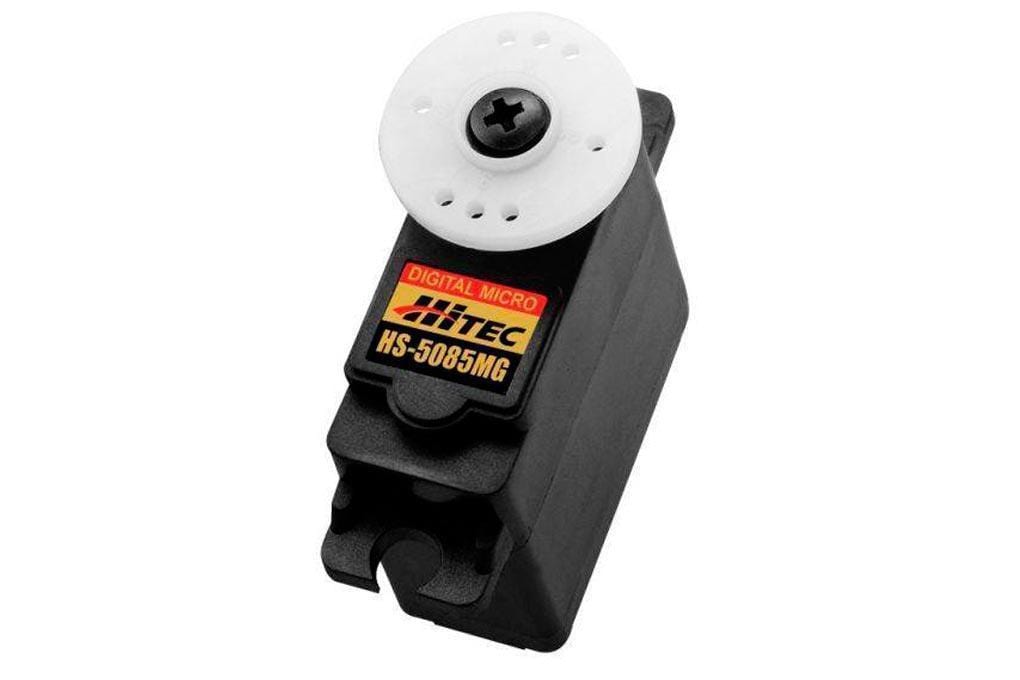

HS-5085MG Digital Metal Gear Micro Servo from Hitec - HRC35085S
The Hitec HS-5085MG is a high quality 17g "size" digital servo with Metal gears. This servo is a good choice for people looking for the perfect blend of durability, accurate centering, high resolution, and relatively low weight. The Metal gear train and top ball bearing provide extreme reliability and the servo is digital for ultimate resolution. The servo features a universal connector which works with nearly all receivers. It will fit Futaba J, Hitec S, JR, and Airtronics Z-type Connectors. See specifications tab for full specs.
Features:
- Metal gears
- Top Ball Bearing
- Digital
- Universal connector
- Excellent centering
Includes:
- One HS-5085MG servo
- Two servo arms and one wheel
- Two brass eyelets
- Two mounting screws
- Two servo grommets
Product Specifications:
Servo Class |
Micro |
Servo Type |
Digital |
Gear Material |
Metal |
Direction |
Standard / Normal |
Operating Voltage Range |
4.8V to 6V |
Speed (4.8V) |
0.17 sec @ 60 deg |
Speed (6V) |
0.13 sec @ 60 deg |
Torque (4.8V) |
3.6 kg/cm (50 oz/in) |
Torque (6V) |
4.3 kg/cm (59.7 oz/in) |
Current Draw at Idle |
3mA |
Current Draw Operating (No Load) |
240mA |

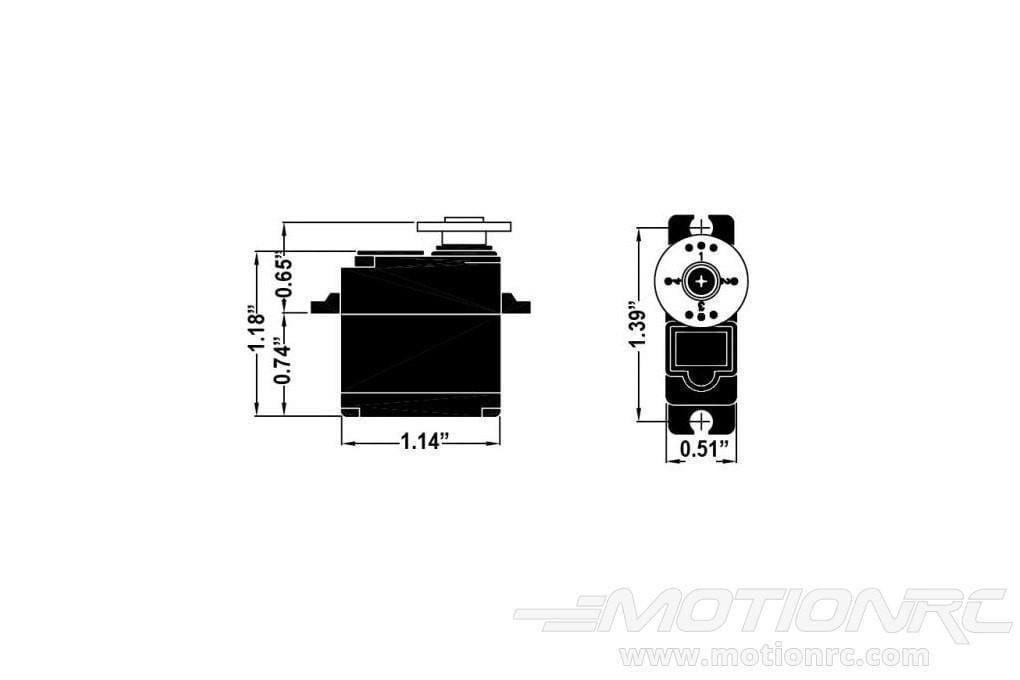

Dimensions (L x W x H) |
29 x 13 x 30mm |
Weight |
21.9g (.77oz) |
Lead Length |
178mm |
Q&A
Product questions & answers
NOTE: Questions submitted on this page are answered by customers who have previously purchased this item. If you have a support related question that requires immediate assistance, please visit our Help Center
Customer Reviews
- Reviews
Great service
Would purchase with them again
Noisy but Effective
I like these servos just fine - they center well, they perform well, and when I need this size they are my go-to. But they whine a lot!
Sevrvo has 5085mg
work great but one show up with out its rubber grommet
Hitec HS 5085-MG digital servo
Excellent customer service, and super fast shipping!
calificacion de producto
excelente producto y servicio prestado
hitec HS-5085MG
Works very in my wing
-
