AH-1 Cobra Camo 500 Size Helicopter Scale Conversion Kit from Roban - RBN-KFAH1C5
The Roban AH-1 Cobra Camo 500 size is a scale conversion kit modeled after the famous AH-1 Cobra attack helicopter used by the US Marines. This is a premium scale conversion kit that offers tremendous detail. From tip-to-tail the AH-1 Cobra body kit displays an accuracy of detail to the real aircraft not normally seen in the RC helicopter hobby.
This kit comes with a scale detail features like guns, rocket launchers, aerials, windshield wipers, and more. Floor and ceiling details can be crafted so once the interiors are installed you have an impressively scaled cockpit/interior.
These scale kits house the cockpit (sold separately) in precisely the right location and the mechanics are built into the engine compartment just like in the full-scale version. The AH-1 Cobra really impresses with the highly detailed and accurately scaled down profile.
Visit the Official Roban 500 Size AH-1 Cobra Camo Scale Helicopter Conversion Kit Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
Features:

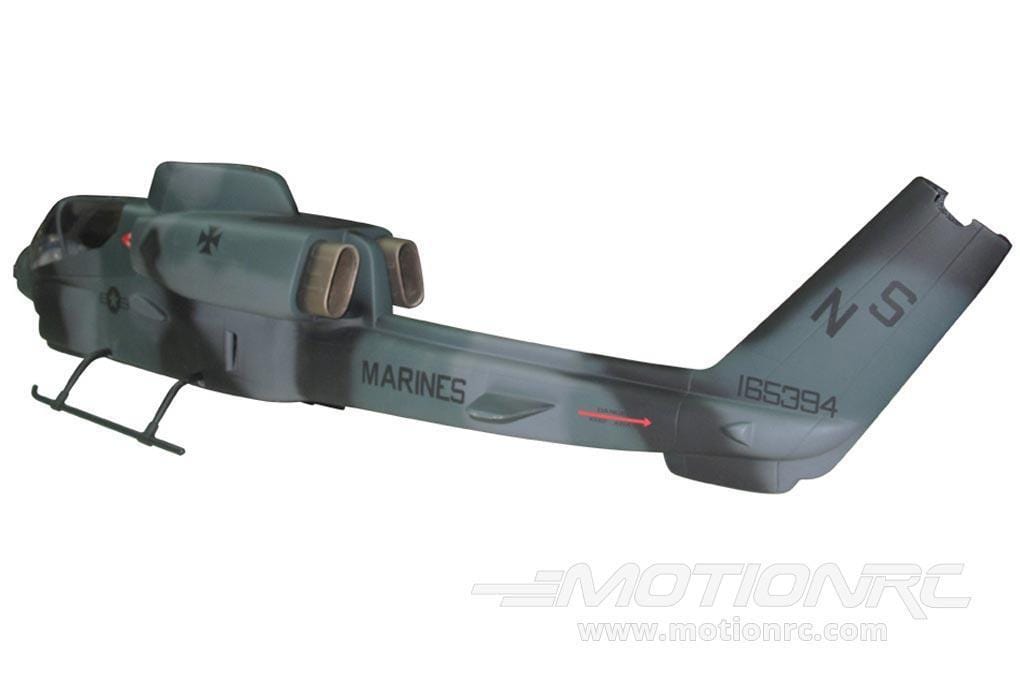

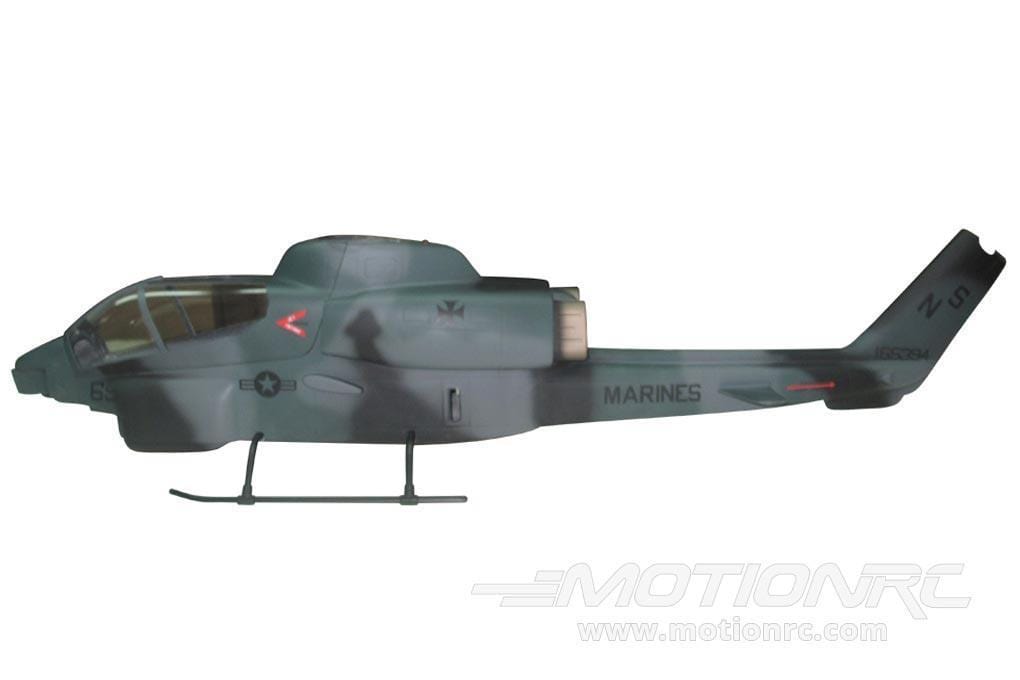

- Fully painted fiberglass scale fuselage
- Extremely detailed surface with molded panel lines and rivets
- Parts for elevated tail rotor
- Scale weapons set (guns and rockets)
- Use of 500 standard equipment (6S Battery, 1400-1600Kv motor), fly with your existing parts
- 1127mm long
Includes:
- Roban AH-1 Cobra Camo 500 body kit
- Scale weapons set (guns and rocket launchers)
Requires:
- 500 Size helicopter kit
- Helicopter flight controller - we recommend the BeastX MicroBeast Plus Flybarless System
- Brushless motor - we recommend the Scorpion HK 3226-1400Kv Brushless Motor
- Electronic speed control (ESC) - we recommend the Castle Creations Phoenix Edge 100A ESC with 5A SBEC
- Battery eliminator circuit (BEC) - we recommend the Castle Creations 20A BEC Pro
- Three cyclic servos - we recommend the MKS HV9767 Titanium Gear High Voltage Servo Multi-Pack (3 Servos)
- Tail servo - we recommend the MKS DS HV9780 High Voltage Tail Servo for 500 Size Roban Helicopters
- 6 Cell 22.2V 2600-3300mAh LiPo battery - we recommend the Admiral 6 Cell 22.2V 3300 mAh LiPo Battery with XT60 connector
- 7 Channel radio - select a minimum 7 channel radio with pitch and throttle curves from our Radio Collection
- 7 Channel receiver - select a minimum 7 channel receiver from our Receiver Collection
Optional:
Roban Scale Helicopters are intended for modelers who have advanced level building skills. Both ARF and KIT product formats require you to install your own electronics (ESC, servos, motor, etc). KIT product formats also require you to install your own helicopter mechanics. Because helicopter mechanics can vary greatly in size and shape, you may be required to modify the fuselage slightly (including cutting, drilling, etc.) to achieve a perfect fit. Roban fuselages are all handmade from fiberglass and therefore may have slight variation in tolerances between body panels, doors, or windows. These variations do not affect flight performance and can be easily adjusted by an experienced builder with proper tools. These precautions are intended for novice builders; an experienced modeler should have no issue achieving perfect results with these premiere scale helicopters kits.
Product Specifications:
Class / Size |
500 |
Power Type |
Electric |
Rotor Type |
Collective Pitch |
Body Material |
Fiberglass |
Overall Size (L x W x H) |
1127 x 328 x 245mm |
Flying Weight |
1195g |
Main Rotor Diameter |
N/A |
Main Rotor Blade Length |
N/A |
Tail Rotor Diameter |
N/A |
Tail Rotor Blade Length |
N/A |
Tail Drive Type |
Torque Tube |
Cyclic Servos |
3x MKS HV9767 - MKS6005-005 |
Tail Servo |
1x MKS HV9780 - MKS-HV9780 |
Power System |
3226-1400Kv Brushless Motor |
Electronic Speed Control |
100A ESC |
Recommended Battery |
6S 22.2V 2600 - 3300 mAh LiPo with XT60 Connector |
Battery Compartment Size (L x W x H) |
N/A |
Required Radio |
7 Channel |
Skill Level |
Advanced |
Build Time |
4+ Hours |
Recommended Environment |
Outdoors |
