Hitec HS-625MG Ball Bearing Metal Gear Standard Servo HRC32625S

Lade das Bild in den Galerie-Viewer, Hitec HS-625MG Ball Bearing Metal Gear Standard Servo HRC32625S

SKU: HRC32625S

Hitec HS-625MG Ball Bearing Metal Gear Standard Servo

Normaler Preis: ^€38⁹⁹ (VAT inc.)
Sonderpreis: ^€38⁹⁹
Normaler Preis: ^€0⁰⁰; (Save €-38.99)
Einzelpreis: pro

Out of stock

Die Menge muss 1 oder mehr sein

Notify me when back in stock

Overview
Q&A

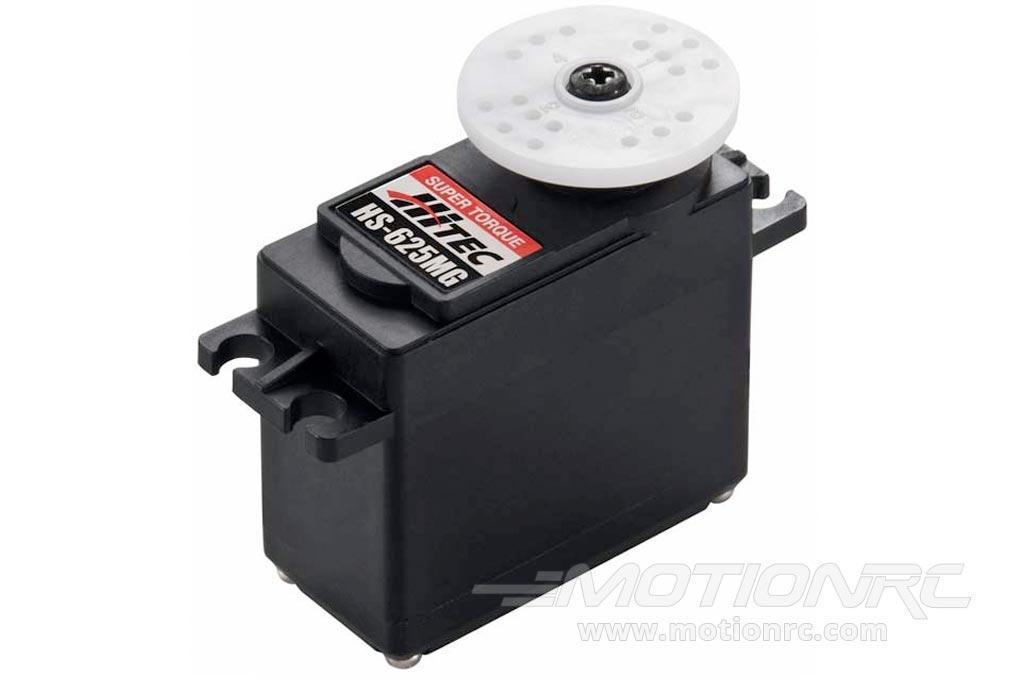

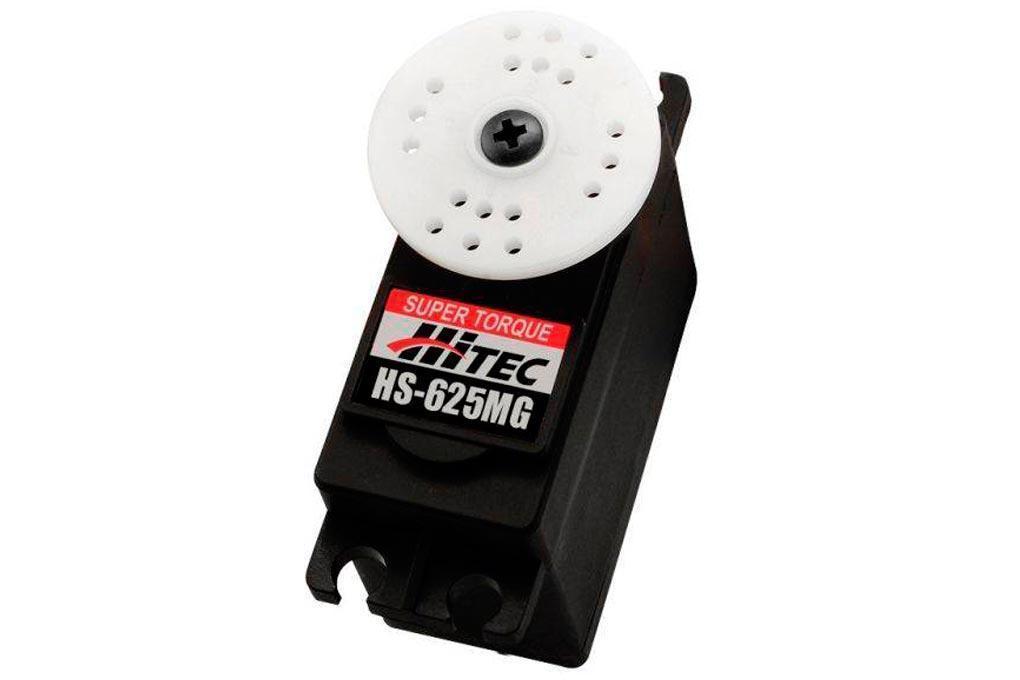

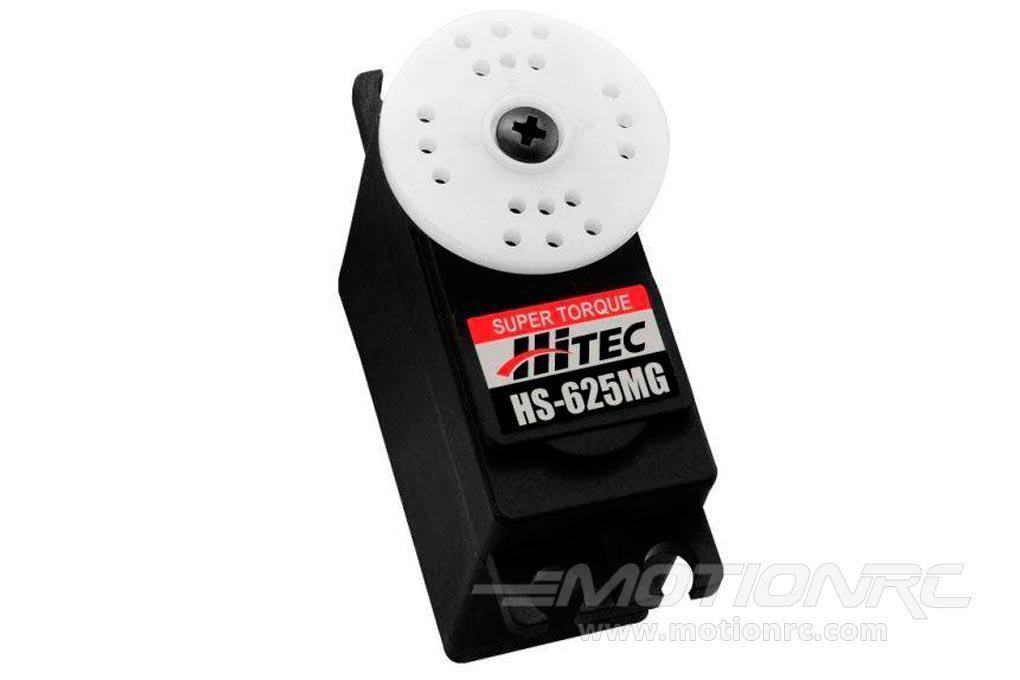

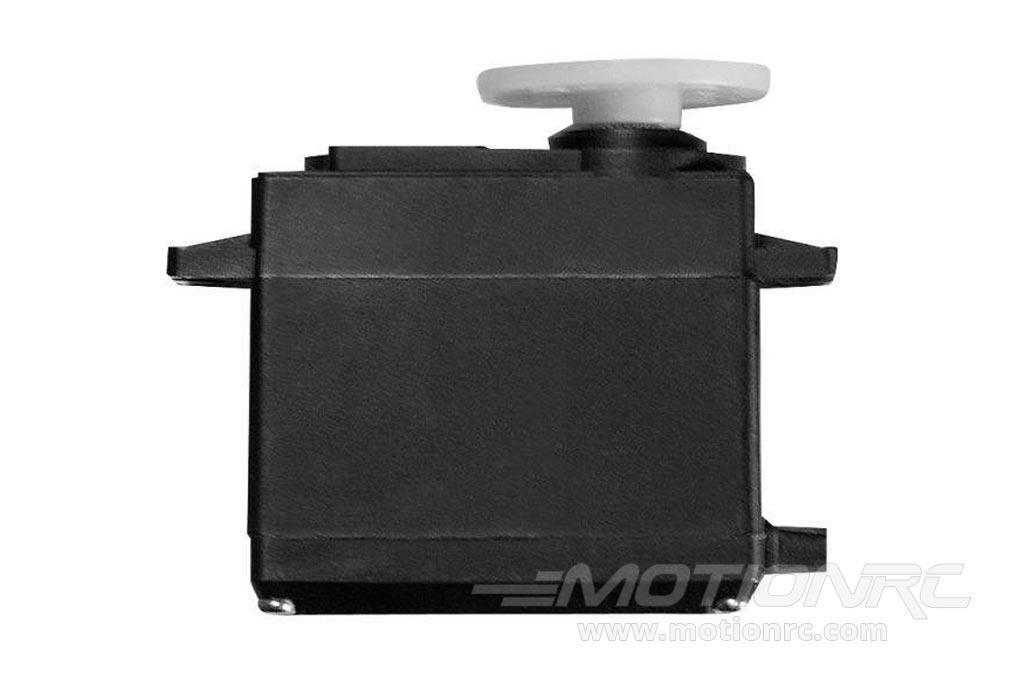

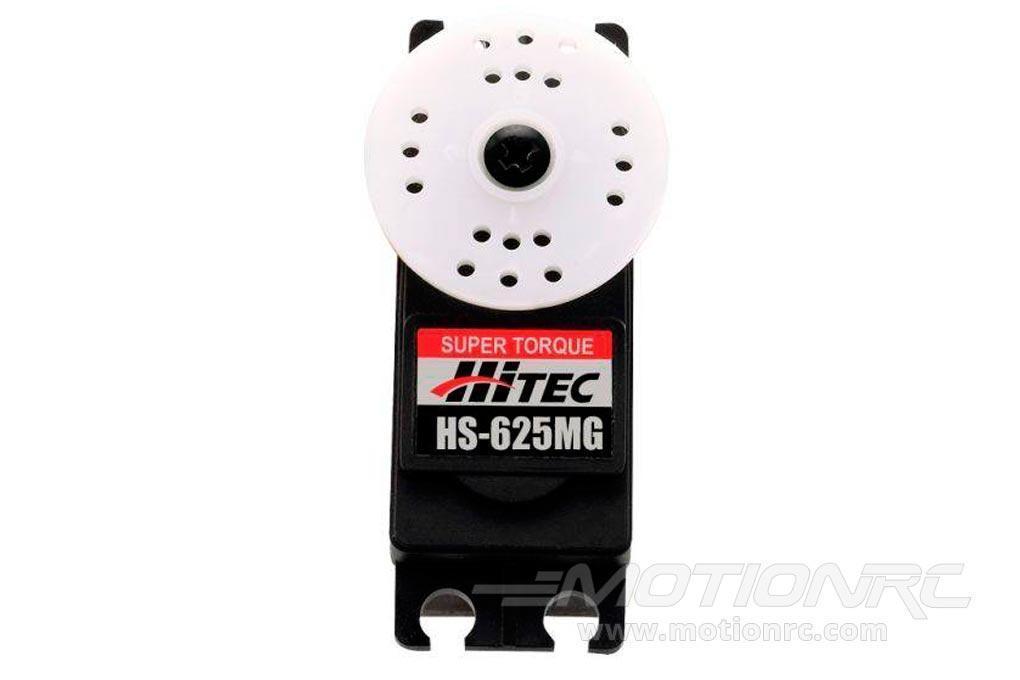

HS-625MG Ball Bearing Metal Gear Standard Servo from Hitec - HRC32625S

The powerful high speed and super torque HS-625MG is a perfect choice for those applications requiring a fast and strong standard size servo. Utilizing M/P and metal gear train technology, the HS-625MG is a fantastic sport servo for larger planes.

Features:

High speed, and high torque standard-sized servo
M/P and metal gear train technology
Three metal gears
Dual ball bearing

Includes:

1x HS-625MG ball bearing metal gear standard servo
4x grommets
4x brass eyelets
4x round, flanged, phillips head screws (1.5 x 14mm)
1x adjustable servo horn
1x large X servo horn (43mm end to end)
1x small X servo horn (30mm end to end)
1x straight servo horn (33mm end to end)

Product Specifications:

Servo Class	Standard
Servo Type	Analog
Gear Material	Metal
Direction	Standard / Normal
Operating Voltage Range	4.8V - 6V
Speed (4.8V)	0.18 sec @ 60 deg
Speed (6V)	0.15 sec @ 60 deg
Torque (4.8V)	5.5 kg/cm (76.37 oz/in)
Torque (6V)	6.8 kg/cm (94.43 oz/in)
Current Draw at Idle	9.1mA
Current Draw Operating (No Load)	500 mA

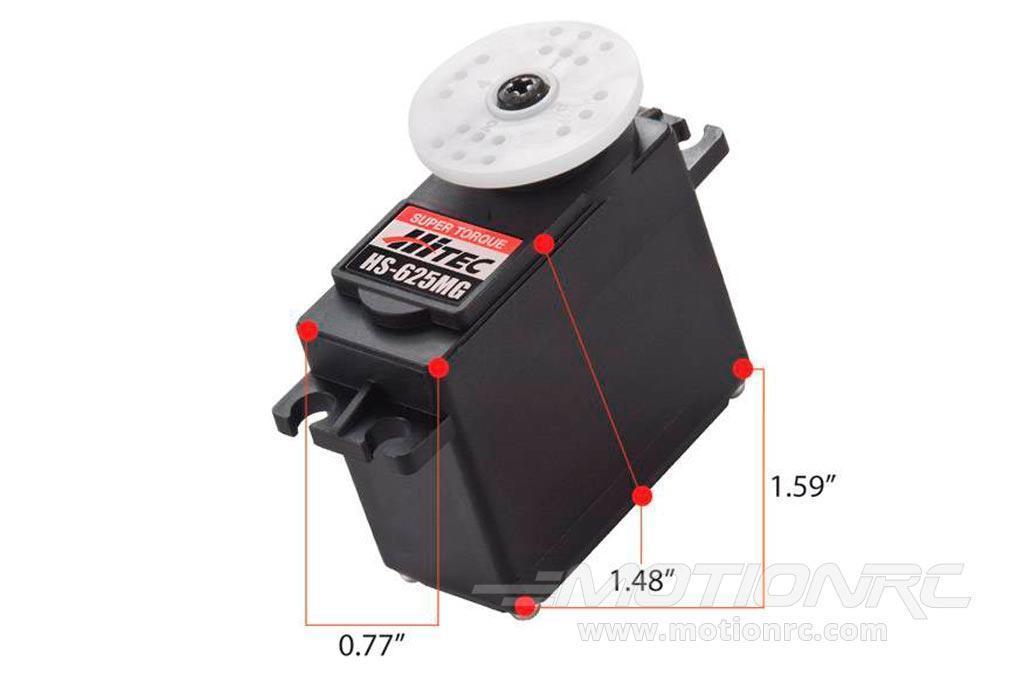

Dimensions (L x W x H)	40.6 x 19.8 x 37.8mm
Weight	55.2g (1.94oz)
Lead Length	330mm
