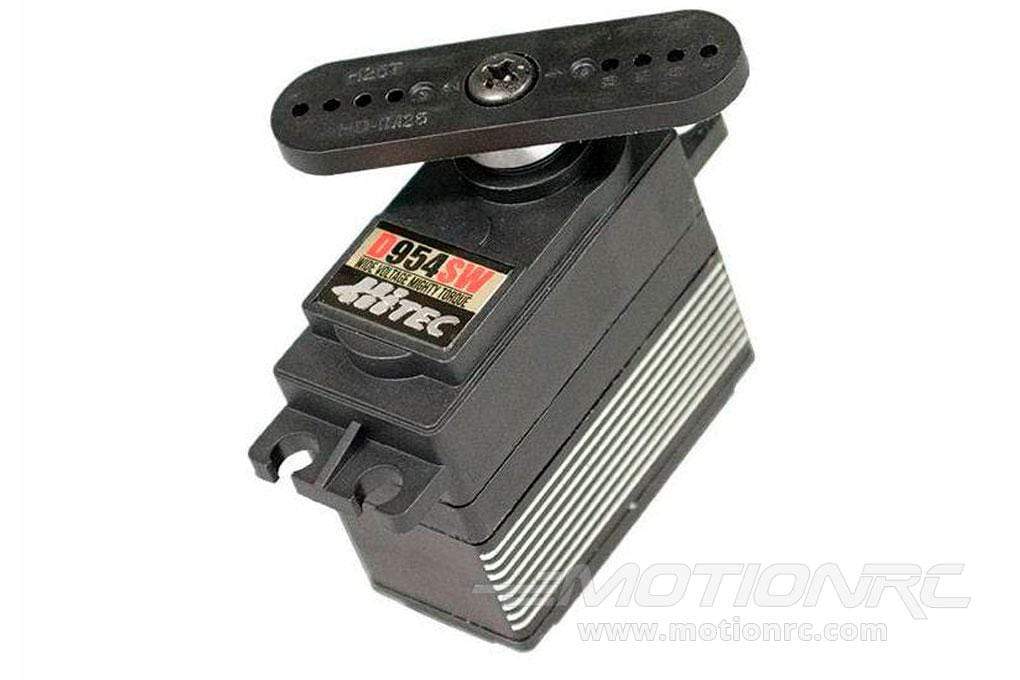

D954SW High Voltage High Torque Dual Ball Bearing Steel Gear Digital Standard Servo from Hitec - HRC36954
The power of Hitec’s D-Series servos continues with the introduction of the next Premium Class trio: the D930SW, D954SW and D955TW. As with their entire “D” line, these technologically-advanced servos are powered by our 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science and possess Smart Sense engineering with rapid, high resolution response. Their unprecedented programmability and wide-voltage capabilities deliver the most progressive, leading-edge performance for all your radio control needs. Built with incredibly durable steel gears, the D930SW are the perfect upgrade from their popular HS-7954SH servo. Advancing servo technology and providing superior engineering has always been Hitec’s mission and that continues today as they expand their outstanding D-Series product line.
Features:
- Programmable PWM Digital Amplifier
- 32-Bit MCU with 12-Bit ADC Circuitry
- 4096 Resolution
- 1M Cycle Long Life Potentiometer
- Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
- Dual Ball Bearing Supported Output Shaft
- 25-Tooth Output Spline
- Coreless Metal Brush Motors
- Nylon Reinforced Plastic Upper and Lower Case
- Diamond Cut Aluminum Heat Sink Center Case
- Dust Resistant and Splash Proof Case
Includes:
- 1x Hitec D954SW High Voltage High Torque Dual Ball Bearing Steel Gear Digital Standard Servo
- 3 Steel Alloy Gears Set
- Metal / Karbonite 1st Gear Set
- Plastic / Aluminum Case Set
- Applicable Horns & Screws
Programmable features:
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Soft Start Rate
- Overload Protection
- Data Save / Load
- Program Reset
Product Specifications:
Servo Class |
Standard |
Servo Type |
Digital |
Gear Material |
Steel |
Direction |
Standard / Normal |
Operating Voltage Range |
4.8V to 7.4V |
Speed (6V) |
0.19 sec @ 60 deg |
Speed (7.4V) |
0.12 sec @ 60 deg |
Torque (6V) |
18 kg/cm (251 oz/in) |
Torque (7.4V) |
29 kg/cm (405 oz/in) |
Current Draw at Idle |
30 mA |
Current Draw Operating (No Load) |
500 mA |
Dimensions (L x W x H) |
40 x 20 x 37mm |
Weight |
68g (2.40oz) |
Lead Length |
320mm |
