US Military Ten 1/12 Scale Missile Launcher Trailer - KIT from Heng Guan - HGN-P805TAN
Version Info: This trailer is offered in kit form, and is intended for advanced modelers familiar with complex, technical models and with experience constructing electro-mechanical replicas requiring specialized tools. As such, Motion RC will support purchasers with missing or defective components ONLY.

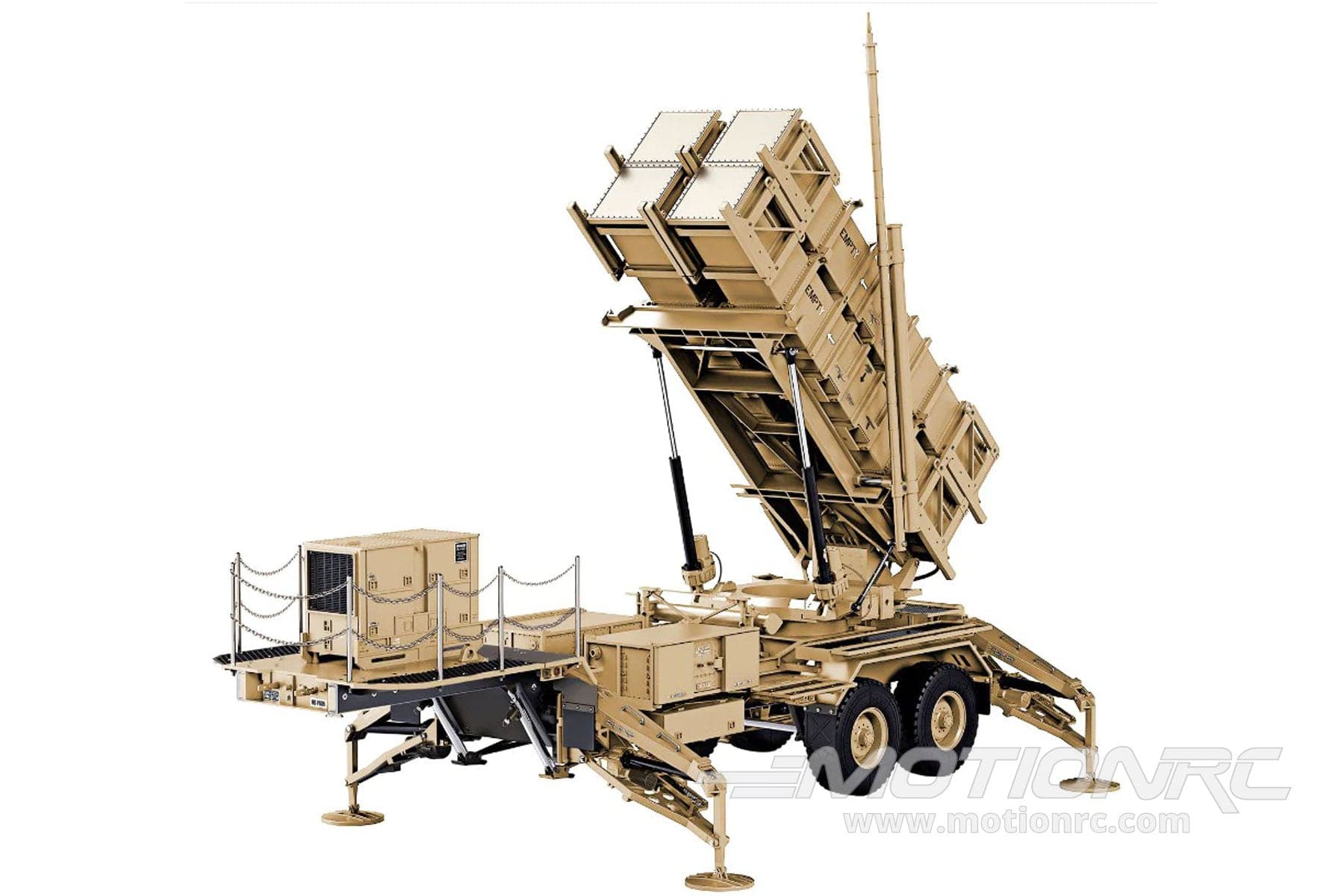

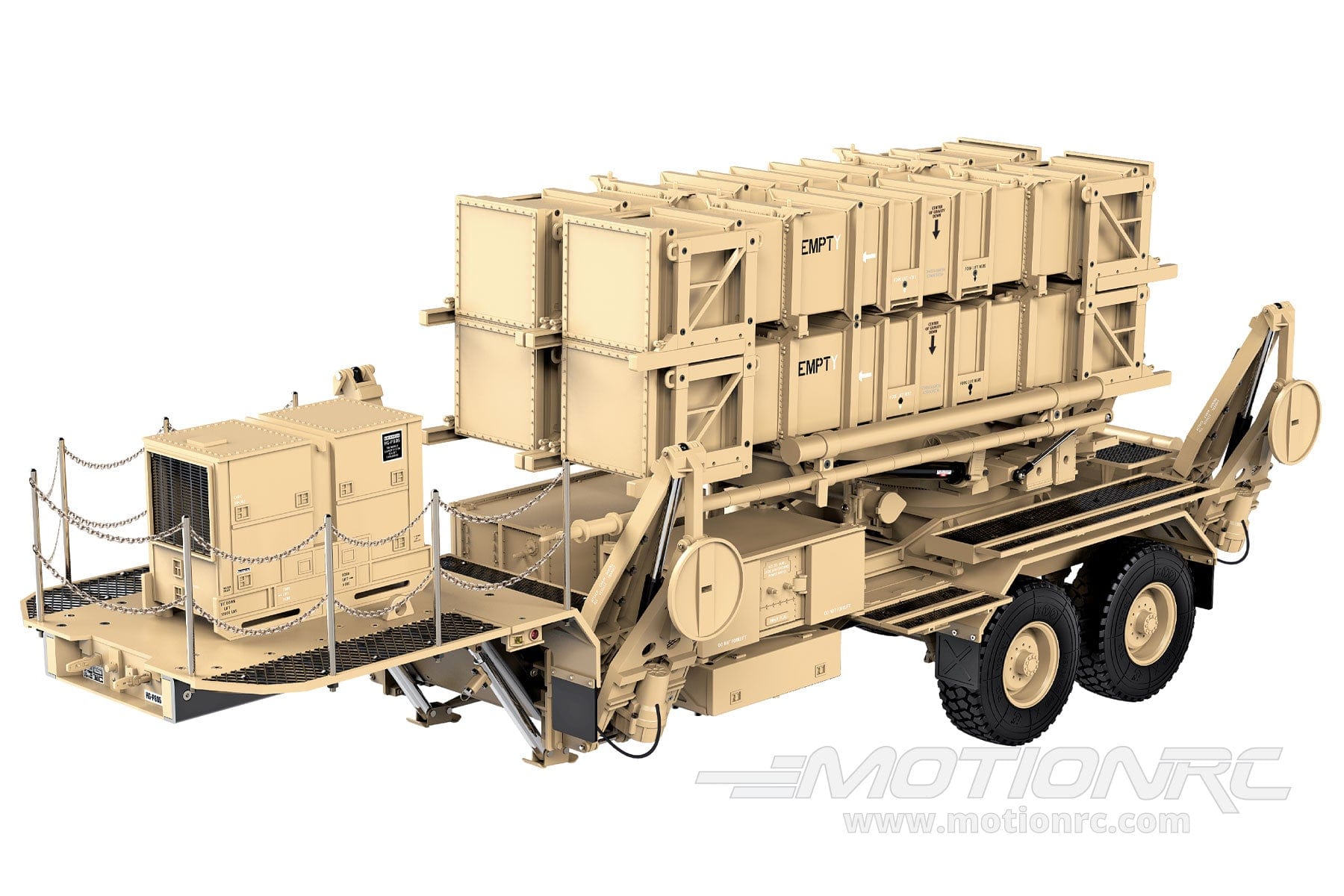

For military vehicle enthusiasts, this massive Patriot Missile Launcher trailer at 35.7”/917mm long will certainly become a centerpiece of any collection. Offered as a 100% assembly kit, this magnificent scale replica features a metal chassis, shock tube dampening suspension, high-power push and pull rods, LED lights, and 360-degree rotation with a 45 degree tilt angle of the missile launch tubes. The screw jack leveling arms can be independently or simultaneously operated and are strong enough to lift the entire 28 lb. (13 Kg) trailer off the ground! Missiles are not included but can be easily fabricated from lightweight model rocket components.
Once assembled, this model can be independently operated (alone) by the included 2.4GHZ “television remote”-style controller or when used in tandem with a P-802 or P-803 HEMTT, the vehicle transmitter can be programmed to control the trailer features.
 |
Perfect Companion When paired with a Heng Guan HEMTT, this impressive model will instantly become the centerpiece of any military enthusiast’s RC model collection. |
 |
Controller Included Use the included remote to operate the various functions and features when the trailer is disconnected from the tow vehicle or displayed alone. |
 |
Powerful Leveling Arms The independently controlled screw jack leveling arms are remotely controlled and powered by individual electric motors to allow the trailer to be precisely positioned on uneven or rough terrain. They produce adequate power to lift the entire trailer off the ground! |
 |
Extraordinary Detail In addition to the impressive array of operating features, once assembled this model will delight even the most discerning scale enthusiast. |
Includes:
- Heng Guan US Military Tan 1/12 Scale Missile Launcher Trailer - KIT
- User manual
- Compact remote
- Hex wrenches
Requires:
- Basic modeling tools (pliers, wrenches, etc.)
- Onboard battery - we recommend HLG6024-002 with a BCT5061-014 adapter
- Li-Ion compatible battery charger - select a suitable charger from our Charger Collection
Optional:
- P-802 or P-803 HEMTT Truck
Product Specifications:
Scale |
1/12 |
Length |
917mm / 35.7in |
Width |
|
Height |
|
Weight |
13kg / 28lbs |
Maximum Climb Angle/Slope |
15 degrees |
Turning Radius |
2m / 78in |
Chassis Ground Clearance |
85mm / 3.3in |
Maximum Tire Elevation from Ground |
With full extention of leveling arms: 5mm / 0.2in |
Missile Tube Angle |
0-45 degrees |
Leveling Arms Range |
0-90 degrees |
