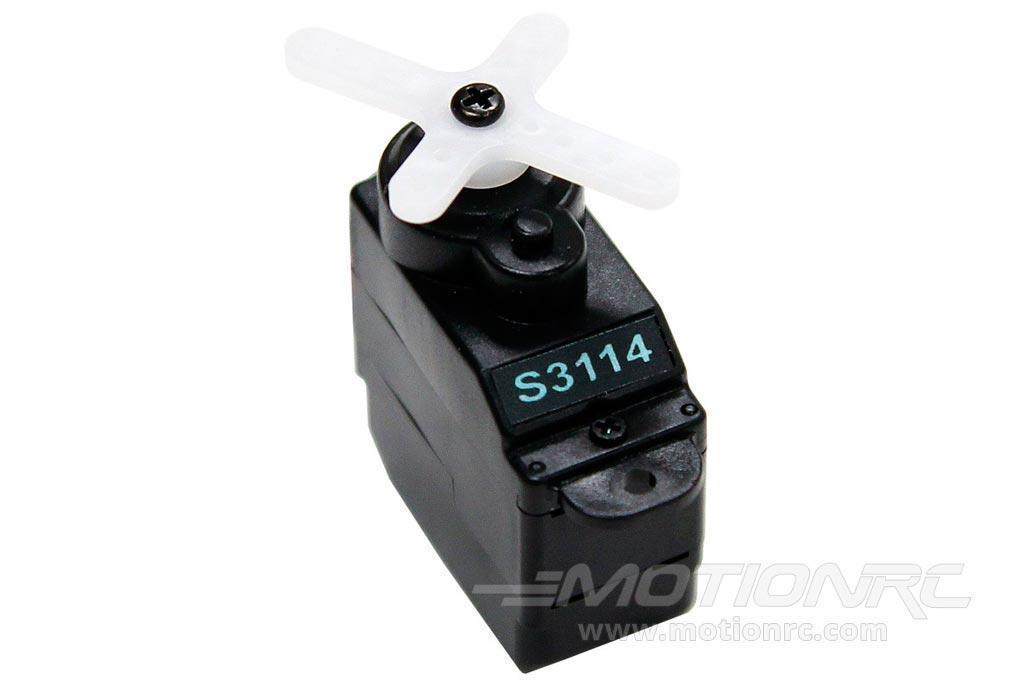

Futaba S3114 High Torque Nylon Gear Sub-Micro Servo FUTM0414

Lade das Bild in den Galerie-Viewer, Futaba S3114 High Torque Nylon Gear Sub-Micro Servo FUTM0414

SKU: FUTM0414

Futaba S3114 High Torque Nylon Gear Sub-Micro Servo

Normaler Preis: ^€15⁹⁰ (VAT inc.)
Sonderpreis: ^€15⁹⁰
Normaler Preis: ^€0⁰⁰; (Save €-15.90)
Einzelpreis: pro

In stock

Only 3 left, Order soon!

Die Menge muss 1 oder mehr sein

Overview
Q&A

S3114 High Torque Nylon Gear Sub-Micro Servo from Futaba - FUTM0414

The S3114 high torque sub-micro is a basic servo that works well for 1400mm wingspan and smaller airplanes, small EDF jets, and 200 to 450 size helicopters.

Features:

Quality basic servo perfect for 1400mm and smaller airplanes and small EDF jets
High torque

Includes:

1x S3114 high torque sub-micro servo
1x .91" x .64" (23mmx16mm) 4 arm servo horn (comes pre-installed)
1x 1.33" x 1.33" (34mmx34mm) 4 arm servo horn

Product Specifications:

Servo Class	Sub-Micro
Servo Type	Analog
Gear Material	Nylon
Direction	Standard / Normal
Operating Voltage Range	4.8V to 6V
Speed (4.8V)	0.10 sec @ 60 deg
Speed (6V)	0.09 sec @ 60 deg
Torque (4.8V)	1.5 kg/cm (21 oz/in)
Torque (6V)	1.7 kg/cm (24 oz/in)
Current Draw at Idle	8 mA
Current Draw Operating (No Load)	N/A
Dimensions (L x W x H)	22 x 11 x 20mm
Weight	7.8g (0.28oz)
Lead Length	304.8mm / 12in
