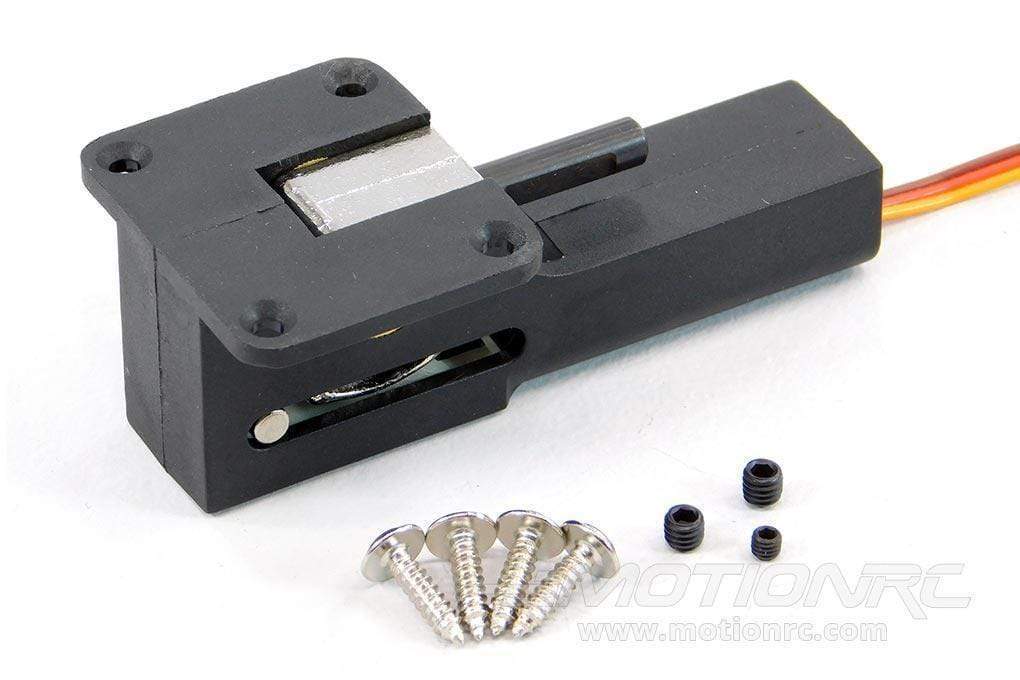

Electronic Retract for 5.1mm Diameter Shafts - Type E from Freewing - ET8403
For the nose gear of the following FlightLine and Freewing RC aircraft:
- Freewing Twin 70mm PJ50
- Freewing 70mm AL37 Airliner
- Freewing 90mm F/A-18C Hornet
- FlightLine RC 1600mm F7F
- Freewing 90mm F-4D Phantom II
Product Specifications:
Gear Material |
Nylon/ABS |
Operating Voltage Range |
4.8V - 6V |
Speed (4.8V) |
3.5 sec @ 90 deg |
Speed (6V) |
3.2 sec @ 90 deg |
Torque (4.8V) |
13 kg/cm (459 oz/in) |
Torque (6V) |
15.5 kg/cm (547 oz/in) |
Current Draw at Idle (4.8V) |
130mA |
Current Draw at Idle (6.0V) |
150mA |
Maximum Load Current (4.8V) |
1900mA |
Maximum Load Current (6.0V) |
2300mA |
Current Draw Operating (No Load) |
10mA |
Dimensions (L x W x H) |
75.5 x 38 x 50mm |
Weight |
66g (2.32oz) |
Lead Length |
560mm |
Q&A
Product questions & answers
NOTE: Questions submitted on this page are answered by customers who have previously purchased this item. If you have a support related question that requires immediate assistance, please visit our Help Center
Customer Reviews
- Reviews
- Questions
Retract motor
Works. Needs higher quality which costs more. Pick your poison. I’d pay more for higher quality. Some others won’t, so it’s a marketing issue.
Freewing Electronic Nose Retract for 5.1mm Diameter
Spare has not been used yet!
Electronic Nose Retract
Good product,works perfect

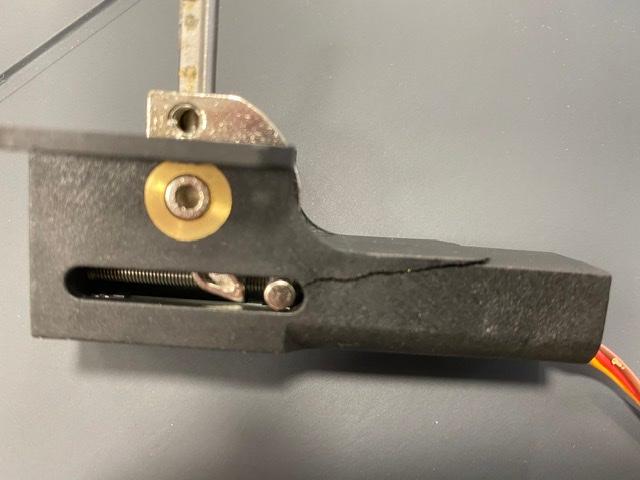

Gotta be careful
They seem to be light duty
Freewing Nose Retract
Good quality retract for the price.
Works like it should
It works like it should!
-
