SCA-1E 2.1 Range Rover Custom 1/10 Scale 4WD Crawler - KIT from Carisma - CIS82768
Version Info: This car is delivered as a kit and requires additional items for operation. See “requires” for details.
Available now at Motion RC, Carisma Scale Adventures SCA-1E Coyote 2.1. Their most popular rig has now evolved to becoming their best performing rig out of the box as well as keeping the popular looks and same affordable price point, while at the same time taking performance to a whole new level.
Now utilizing the Gen 2 chassis architecture as standard, with CMS (chassis-mounted servo) offering a forward weight bias to aid high-performance crawling, with the battery pack located forward as well to improve bias.
Carisma also addressed the issue of “torque twist”, an issue that plagues all shaft driven rigs. The newly developed ATT (Anti Torque Twist Transmission) counteracts and reduces the effects of torque twist by ensuring the front and rear center driveline spin in opposite directions while flipping over the rear diff. This creates a counter rotational force in the central driveline that significantly reduces torque twist and enhances the available traction where you need it most...at the wheels. The rig runs flatter even at full throttle, and this geometry is more stable and predictable when crawling.
True 1.9 symmetrical beadlock wheels allows additional weights to be used (if desired), and Carisma’s soft compound tires offer great all-round performance.

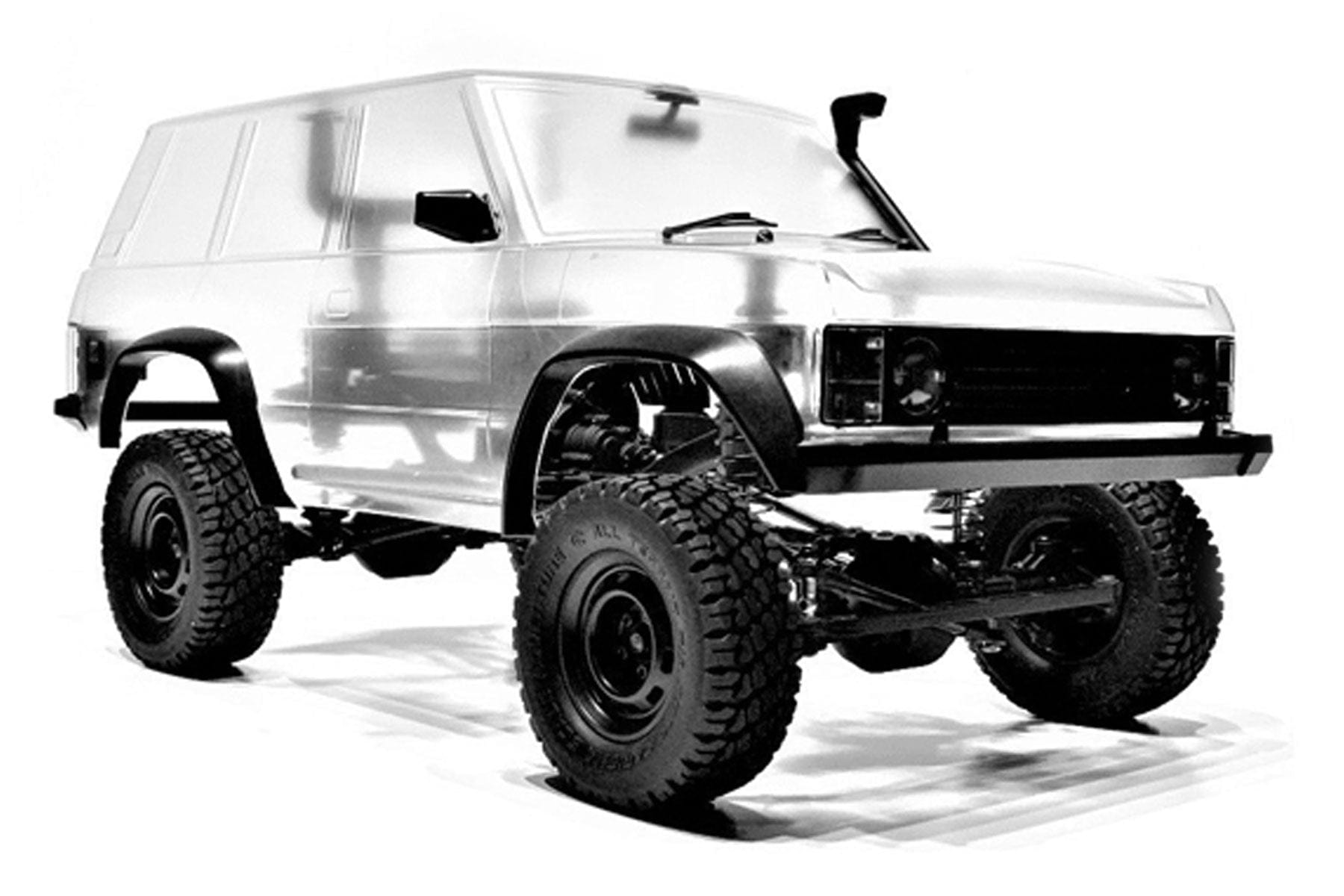

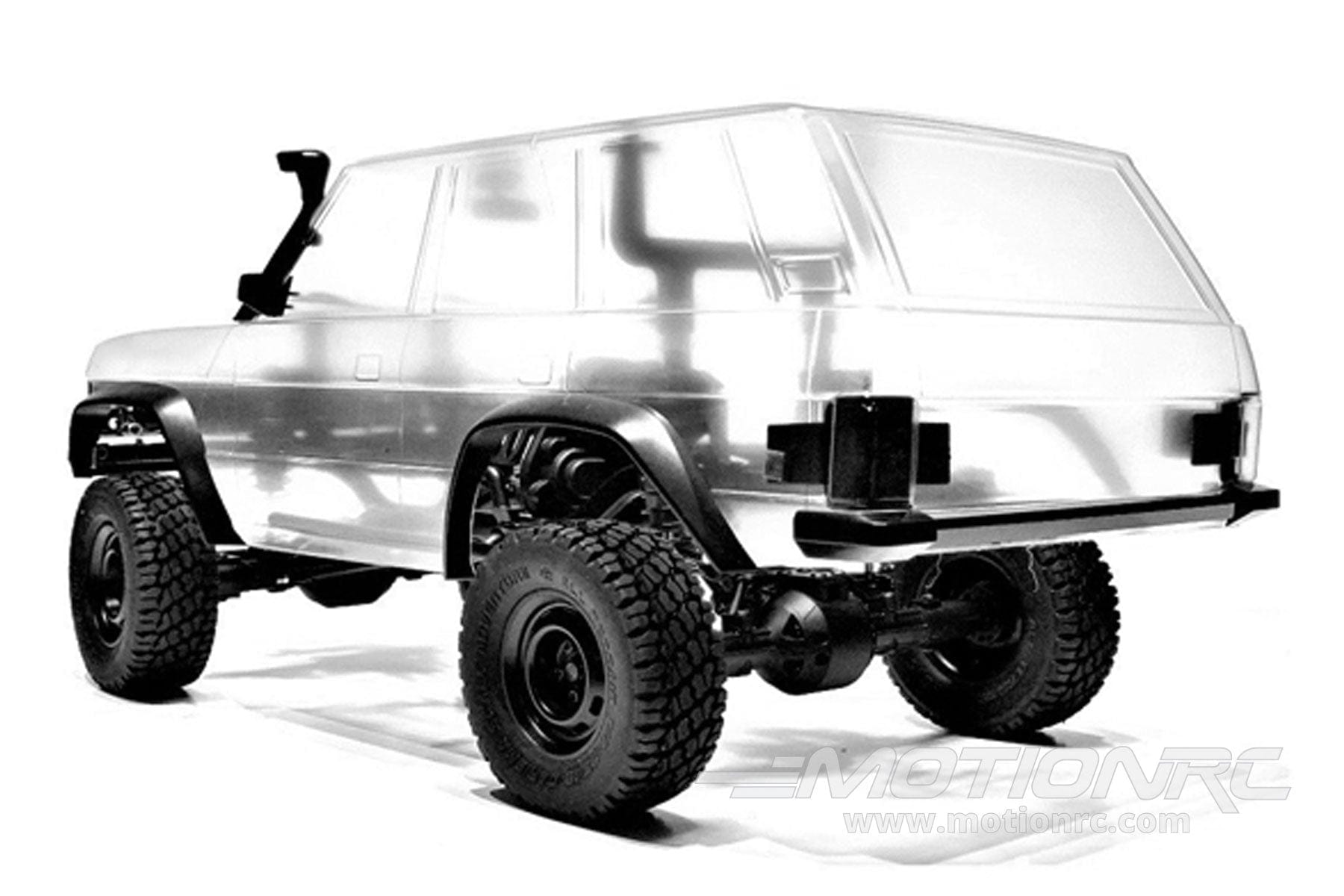

The licensed Range Rover body is provided clear, and Carisma provides injection molded scale details like grille, bumpers, mirrors, and wipers. The body is LED ready and accepts many LED kits.
Enjoy an impressive crawling performance experience by combining the versatile, go-anywhere fun of Carisma’s SCA-1E 2.1 Range Rover Custom 1/10 Scale 4WD Crawler Kit with Motion RC’s industry-leading customer service and product selection for a package that cannot be beat!
Visit the Official Carisma SCA-1E 2.1 Range Rover Custom 1/10 Scale 4WD Crawler Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
 |
Finish It Your Way The 4-link chassis architecture, and optimized 4WD drivetrain combine to deliver a premium crawling experience on dirt, asphalt, or stone. |
 |
At Home On Any Terrain The 4-link chassis architecture, and optimized 4WD drivetrain combine to deliver a premium crawling experience on dirt, asphalt, or stone. |
Features:
- Chassis mounted servo optimized weight bias
- ATT (Anti Torque Twist) transmission
- New optimized final drive gear ratio
- Highly detailed 50's inspired body
- Optional winch ready front bumper
- Optional rear bumper with tow hook
- Soft compound all-terrain tires
- Front CVD's and robust steel drivetrain
- 1.9” beadlock wheels and foam inserts
Includes:
- Carisma SCA-1E 2.1 Range Rover Custom 1/10 Scale 4WD Crawler - KIT
- Instruction Manual
Requires:
- 2 channel surface radio system
- Brushed motor
- Electronic speed control
- NiMH or LiPo battery pack and charger
- Steering servo (9kg minimum)
- Tools and paint for the body
Product Specifications:
Model Scale |
1/10 |
Length |
480mm / 18.9in |
Width |
230mm / 9.1in |
Height |
150mm / 5.9in |
Weight (No Battery) |
24750g / 97oz |
Wheelbase |
285mmmm / 11.2in |
Ground Clearance |
50mm / 1.9in |
Body |
Polycarbonate |
Chassis |
Metal/composite |
Drivetrain |
4WD |
Wheel Size (Diameter x Width) |
95mm x 35mm |
Wheel Hex Size |
12mm |
Tire Tread |
All-terrain |
Bushing Material |
BB |
Suspension |
Links with spring dampers |
Shock Type |
Oil-filled |
Transmission |
4WD shaft-driven |
Gear Pitch |
48P |
Internal Gear Ratio |
2.6 |
Final Drive Ratio |
15.1:1 |
Pinion |
17T |
Spur Gear |
83T |
Differential |
Yes |
Ball Bearings |
Yes |
Brakes |
Electronic |
Electronic Speed Control |
Not included |
Motor |
Not included |
Battery |
2S NiMH or LiPo (not included) |
Max Battery Dimensions (L x W x H) |
135mm x 50mm x 25mm |
Servos |
1 9kg minimum (not included) |
Radio |
2 channel surface (not included) |
Lights |
Optional (not included) |
Sound |
No |
Water Resistant |
Yes |
Skill Level |
Intermediate |
Assembly Time |
3-6 hours |
Recommended Environment |
Indoors/Outdoors |
