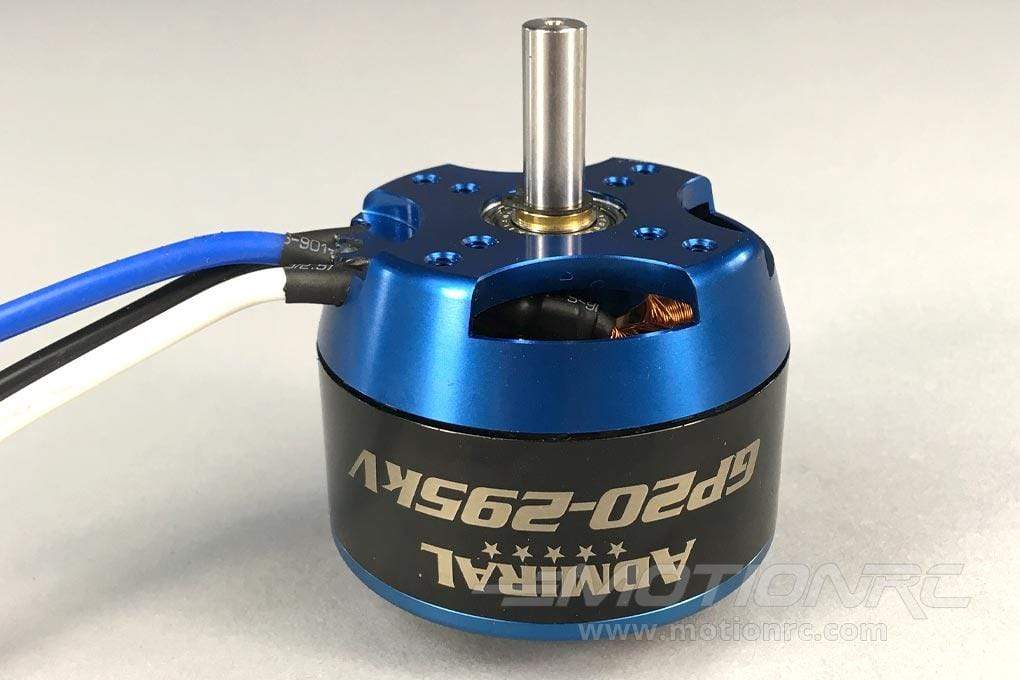

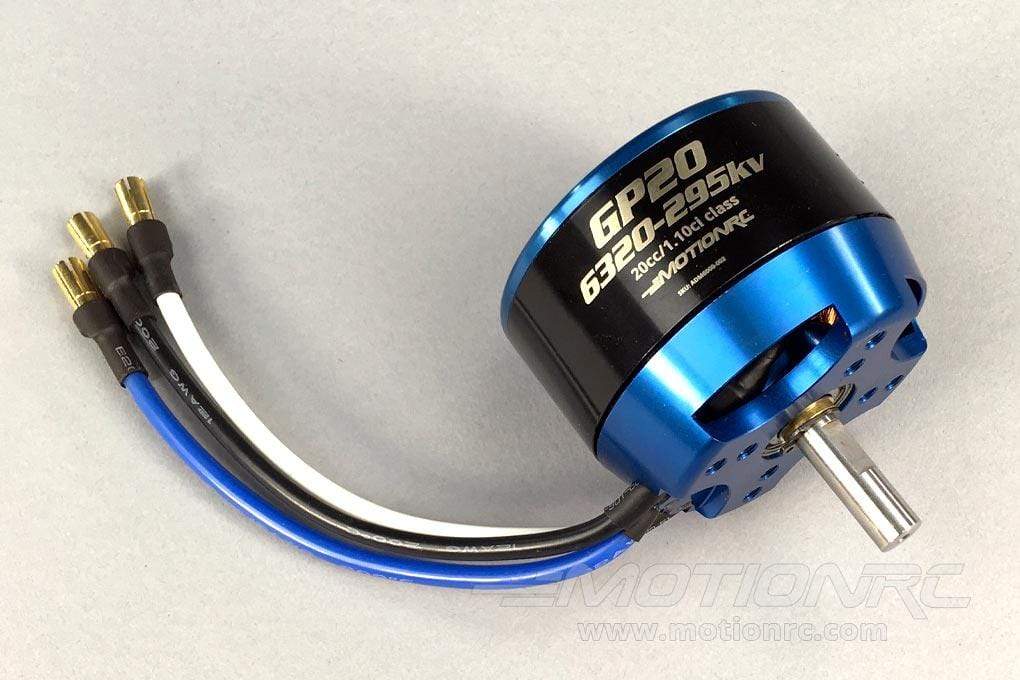

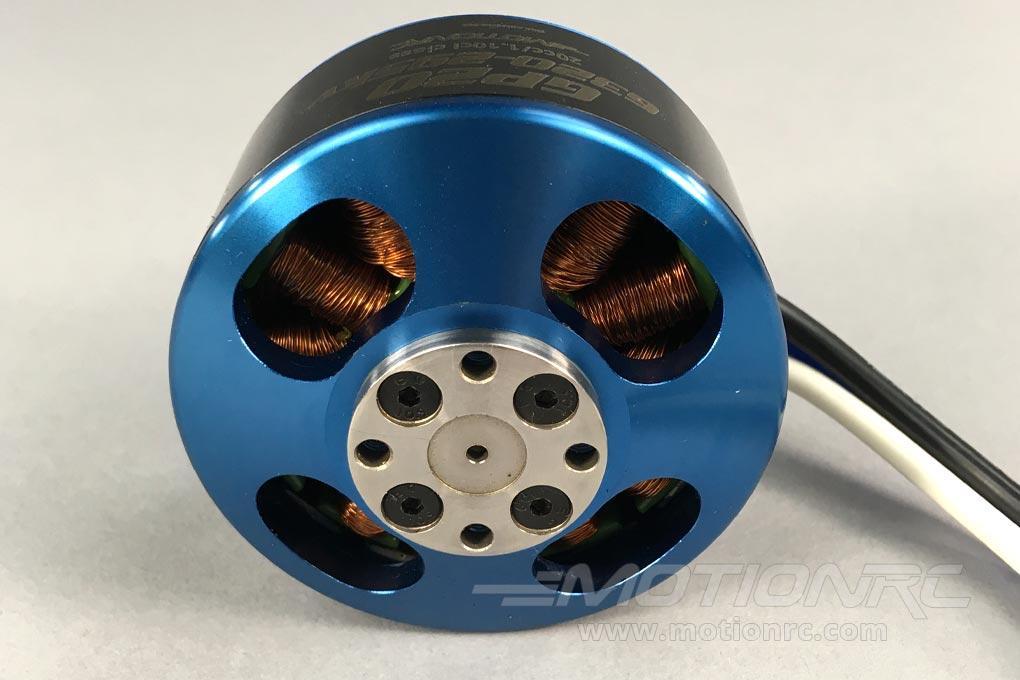

GP20 6320-295Kv Brushless Motor from Admiral - ADM6000-002
Placed firmly at the top of most peoples 'go to' brand for power with our renowned Admiral LiPo's, Admiral is proud to present the latest addition to our Power range, the Admiral 'GP' Series Brushless Electric Outrunners. The Admiral 'GP' series was created specifically for the powering of balsa models traditionally designed for Glow/nitro and Petrol/gas planes, offering a equivalent 'drop in' replacement for a wide range of models from .15ci/2.4cc right through to 1.60ci/25cc class large scale models and beyond, resulting in greater all round performance over 'wet' power systems, without any of the mess! Our GP motors are designed to a high standard, manufactured to a high quality and optimized for maximum power, efficiency and performance, giving you everything you'd expected from an Admiral Power product and all at a very affordable price.
Admiral GP20 6320-295Kv is rated up to 1700 watts and an equivalent to a 1.10ci nitro/20cc gas engine and ideal for large sports and scale models weighing between 4.1 - 6.8kg (9-15lbs), be it your latest large scale balsa ARF project or converting a bigger glow/gas model to electric, the GP20 is the perfect choice for those larger club models when used with a 6-10S LiPo. As with all Admiral GP series motors, the GP20 comes supplied complete with a comprehensive set of mounting hardware, tools, X-plate mount and bolt on prop shaft along with rear shaft extension.
Features:
- Rear shaft extension
- Equivalent to 1.10ci nitro/glow or 20cc gas engine
- Ideal for sports/scale models weighing between 4.1 - 6.8kg (9-15lbs), or 3D/aerobatic models up to 5kg ( 11lbs)
- Suitable for models requiring up to 1700 watts of power
- Rated up to 65 amps
- 5.5mm gold pin connectors
- High torque output
- Mounting hardware and accessories included
- Admiral blue anodized finish
- Quiet and lightweight alternative to nitro/gas
- Hardened steel 8mm shaft supported by high quality ball bearings
- 8mm rear shaft for reverse installation
- Designed for use with props from 16x8 - 19x10 and 6-10S LiPo
- Recommended motor for the BlackHorse STA Ryan, PC-9 20cc, Wilga and Turbo Beaver

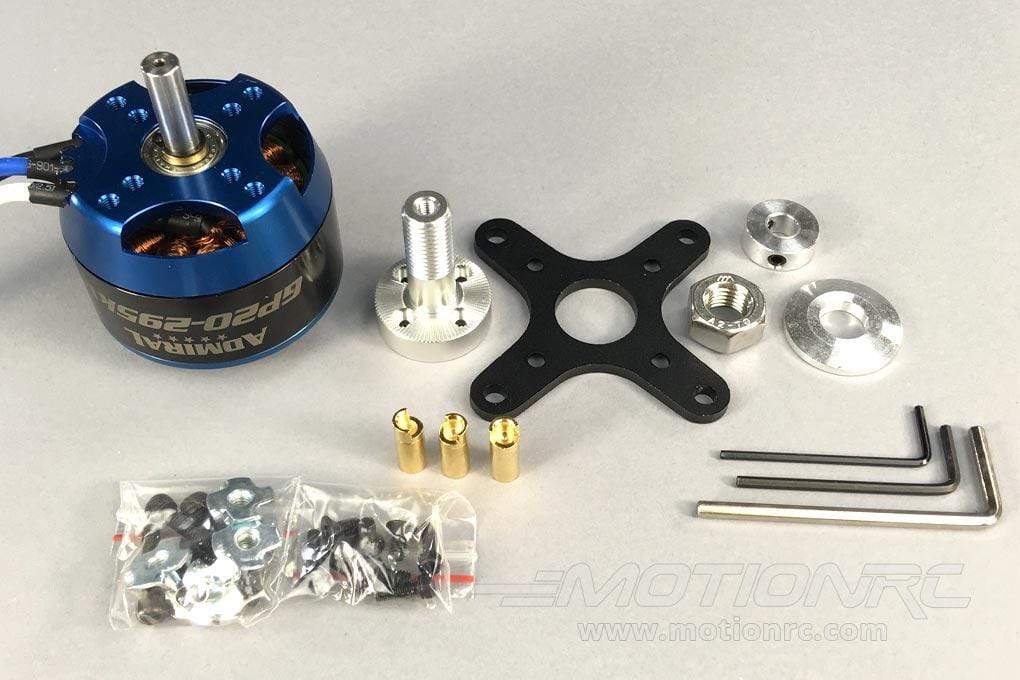

Includes:
- Admiral GP20 6320-295Kv Brushless Motor
- Bolt on 12mm prop shaft
- Mounting hardware
- X-mount plate and accessories
- 5.5mm gold pin connectors
Requires:
- Please review the specification table at the bottom of this page for battery, ESC and other recommendations that will work best for this motor
Product Specifications:
Motor Type |
Outrunner |
Kv Rating (RPM/Volt) |
295Kv |
Maximum Watts |
1700W |
Maximum Burst Current |
65A |
Recommended Battery (Input Voltage) |
8S to 9S |
Recommended ESC |
120A |
Recommended Propeller / EDF |
17x8 to 19x10 |
Slots, Poles |
12, 14 |
Shaft Diameter (A) |
8mm |
Motor Length (C) |
20mm |
Motor Diameter (D) |
63mm |
Overall Length (E) |
28mm |
Weight |
490g / 17.28oz |
Connector Type |
5.5mm Bullet |
