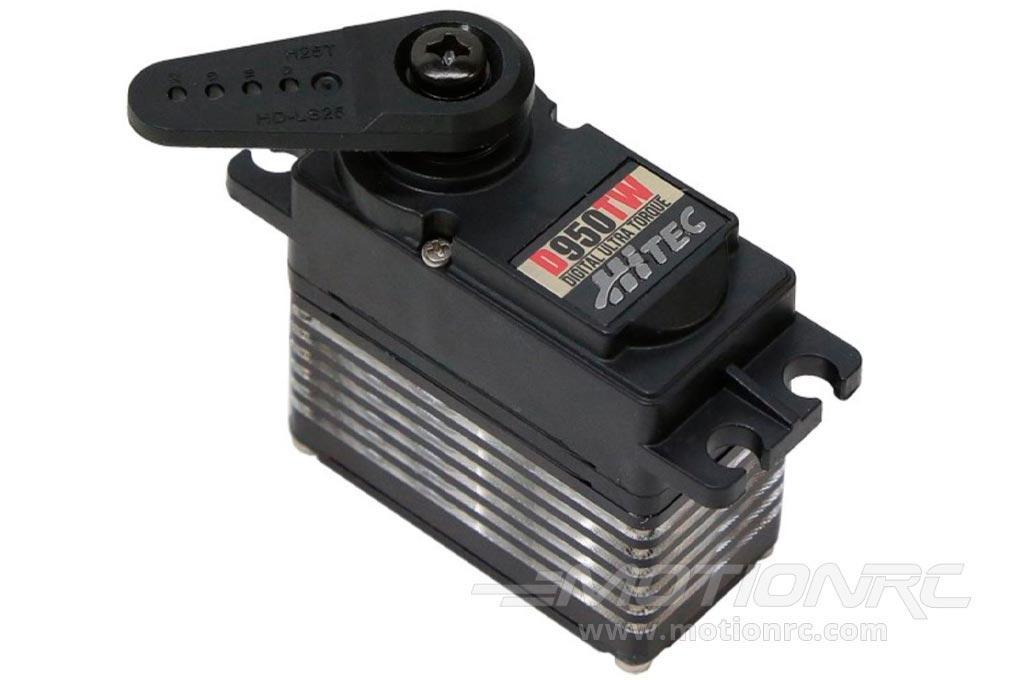

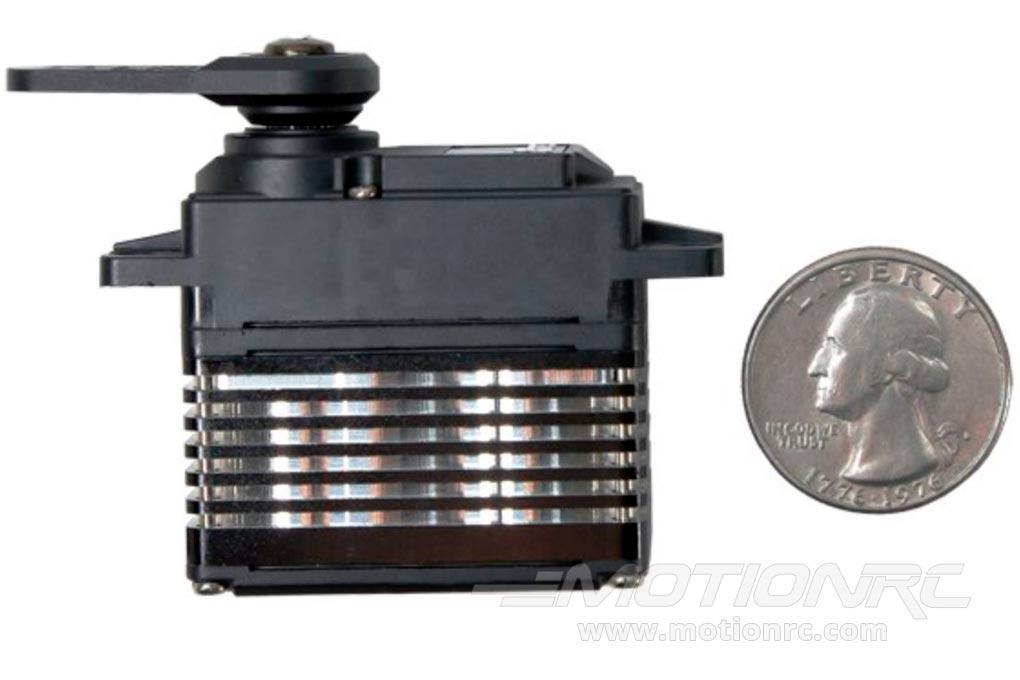

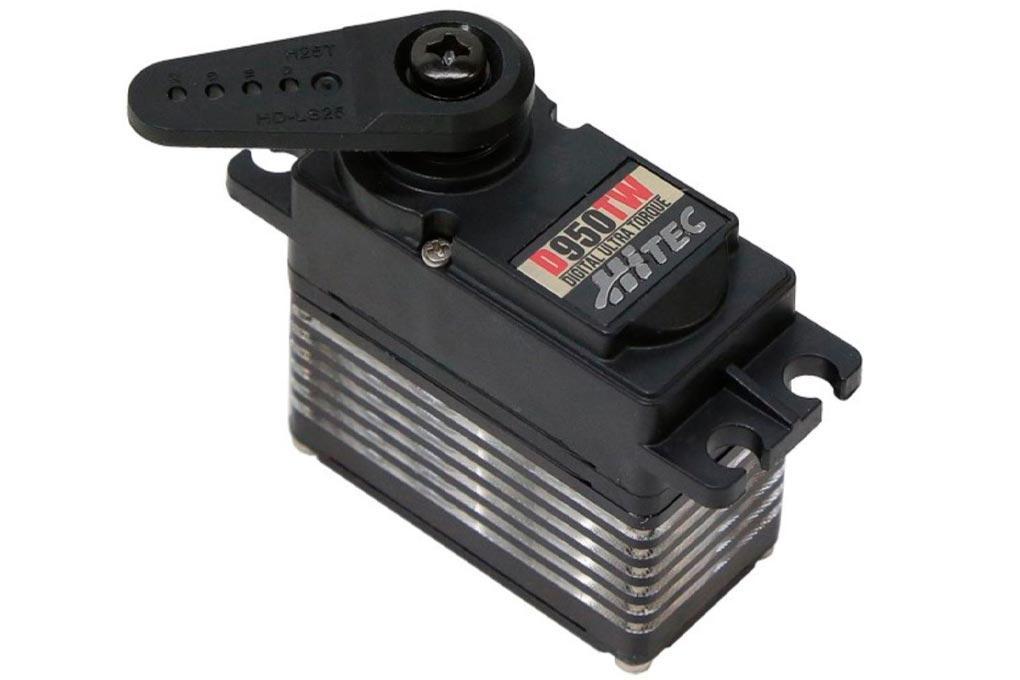

D950TW Digital High Torque Dual Ball Bearing Titanium Gear Standard Servo from Hitec - HRC36950

The titanium gear D-950TW is part of Hitec’s D-Series dynamo servo line. All Hitec D-Series servos have been designed using their cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU, and a 12-bit ADC for unprecedented programmability and flexibility. These servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec’s industry standard 25-tooth output spline with an M3 pan head with a phillips drive style, each D-Series servo brings monster performance never known before in the market.

Features:

• Wide Voltage Range: DC 4.8-8.4V
• 2 cell Li-Pi (6 cell Ni-MH) compatible
• Programmable digital amplifier with MOSFET drive
• Gold plated connector
• Narrow dead band width & high standing torque
• Applied H25T horn gear
• 3mm horn screw (‘+’ & HEX socket screw included)
• 32bit MCU / 12bit ADC
• Durable titanium alloy metal gears with dual ball bearings
• Ultra hardness gear shaft with 3 axial metal bushing
• Heat sink for motor
• Water & dust resistant (splash proof)

Includes:

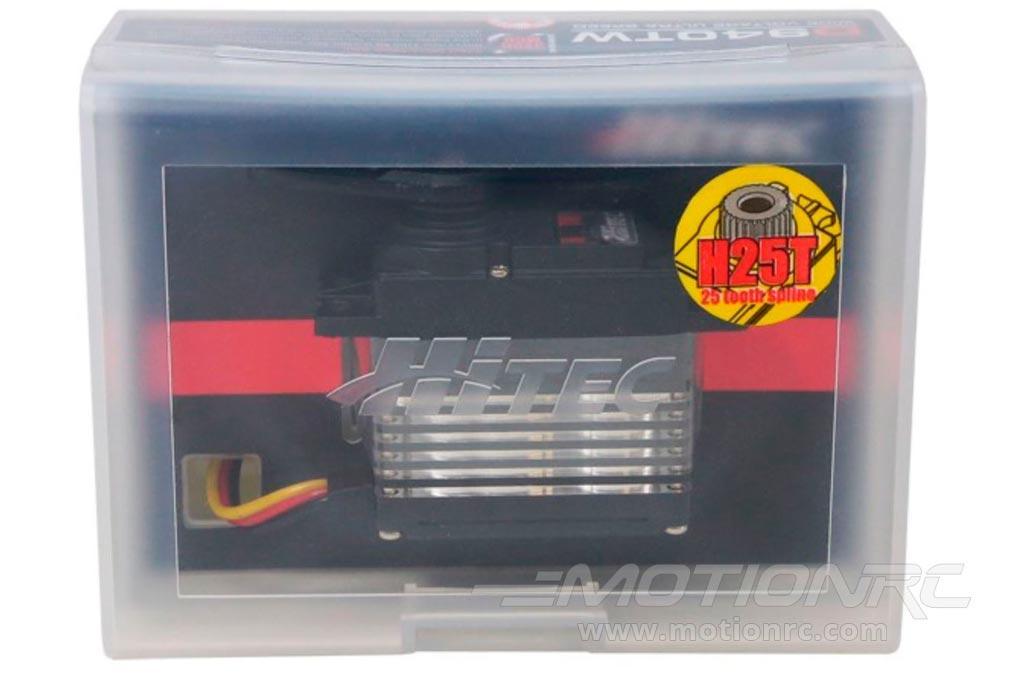

• 1x D950TW digital high torque dual ball bearing titanium gear standard servo

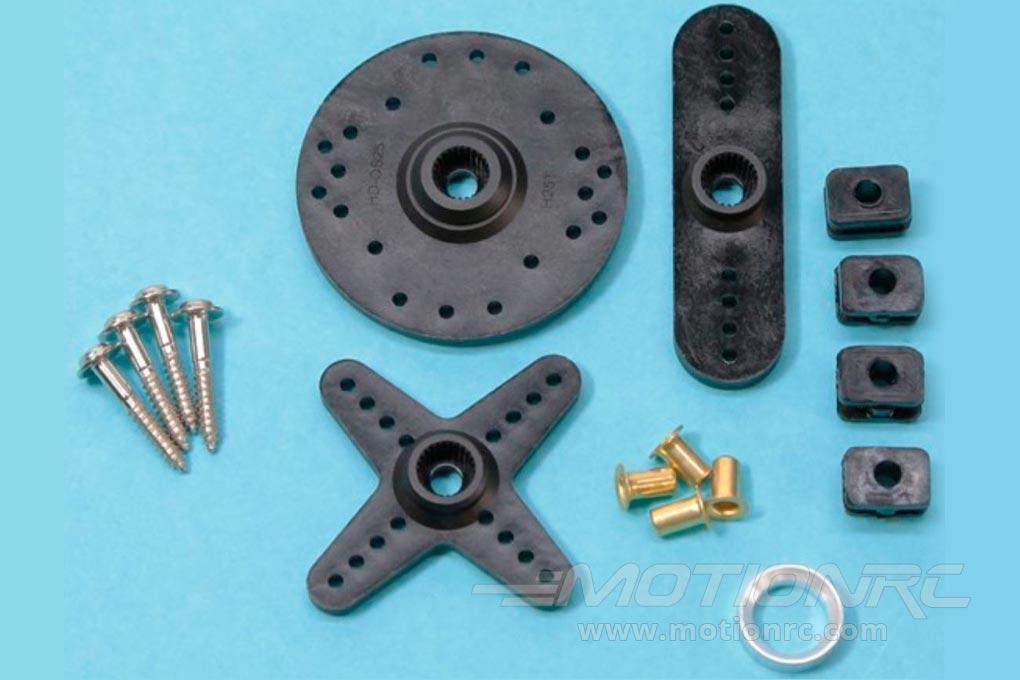

• Servo horns and hardware

Tech Note: In order to program the Fail-Safe on this servo you will need to purchase the Hitec field programmer sold separately. The metal servo horn will fit any Hitec servos that have a "+" stamped on top of the output shaft.

Product Specifications:
