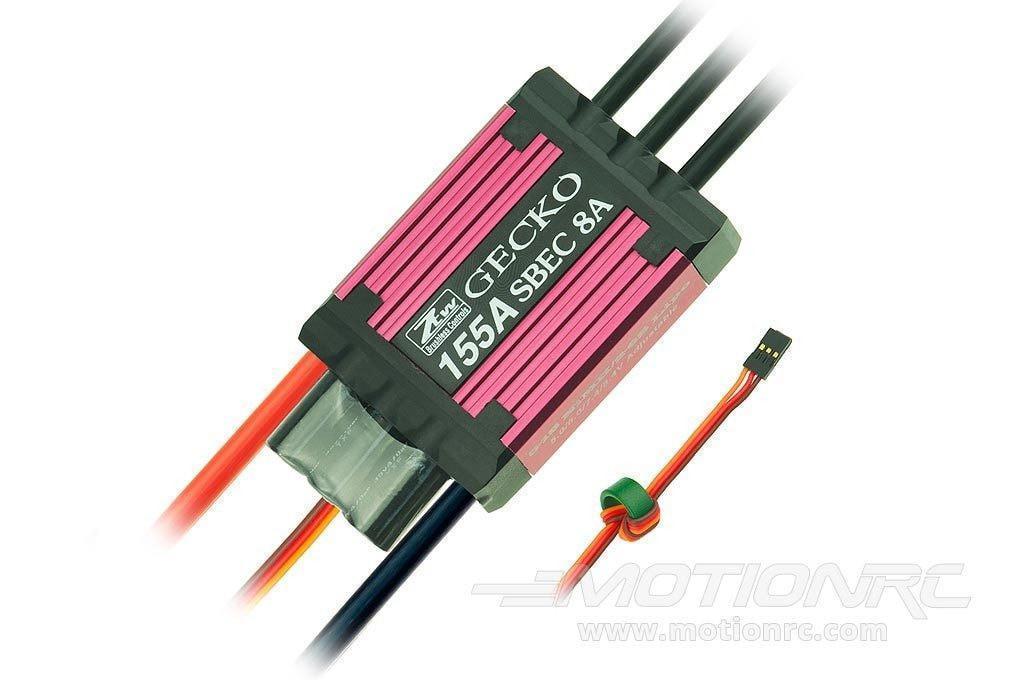

ZTW Gecko 155A ESC with 8A SBEC - ZTW4155201

This ZTW Gecko series ESC is a high-quality, efficient brushless electronic speed control with an integrated switch-mode BEC. It can operate without the need for a separate receiver battery to power your servos and receivers saving you weight and simplifying your electronic connections. The Gecko series includes an aluminum heat sink body which is lightweight and helps dissipate heat more efficiently. The BEC on the Gecko has been specifically designed to support higher current applications to eliminate the possibility of unwanted shutdowns, and it is also capable of supporting simultaneous multiple servo operations typically found in large-scale airplanes and CCPM equipped large-scale 3D helicopters. If you are looking for a top of the line, full-featured ESC at a competitive price, the ZTW Gecko is the logical choice. (Battery and motor leads are both 145mm),

Features:

• Data logging system such as temperature, voltage, current, and RPM
• SBEC Voltage Output 5.0, 6.0, 7.4, and 8.4V
• Advanced Governor Mode and soft start
• High SBEC Current Output, continuous 8A and burst 16A, designed to meet your high current applications
• Power arm protection, over-heat protection, low-voltage protection and lost-signal protection
• Secondary sub-menu setting by the LCD program card or your PC
• Super smooth and accurate throttle linearity
• Support for most motors, including high RPM motors
• Programmable motor timing
• Utilizes new smaller MOSFET technology to minimize weight
• Aluminum finned heat sink
• Programmable throttle input range
• Anti-spark circuitry (on HV OPTO models only）
• ESC firmware and program settings can be updated via PC connection (USB adapter sold separately)

Includes:

• ZTW Gecko 155A ESC with 8A SBEC
• Pre-installed EC5 Connector (power connector) and 5.5mm bullet (motor connector) for your convenience
• Instruction Manual

Optional:

• ZTW LCD Programming Card - More Info
• WiFi Programming Module - More Info

Product Specifications:
